Veterinary Anesthesia Ventilator YR06103
The Veterinary Anesthesia Ventilator YR06103 is a state-of-the-art solution designed specifically for veterinary use, of…

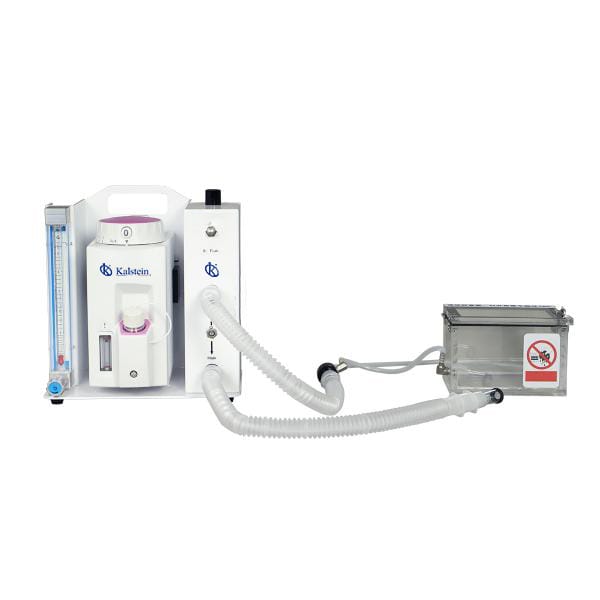

Veterinary Anesthesia Machine YR06099
The Veterinary Anesthesia Machine YR06099 is a state-of-the-art device designed to provide precise and controlled anesth…

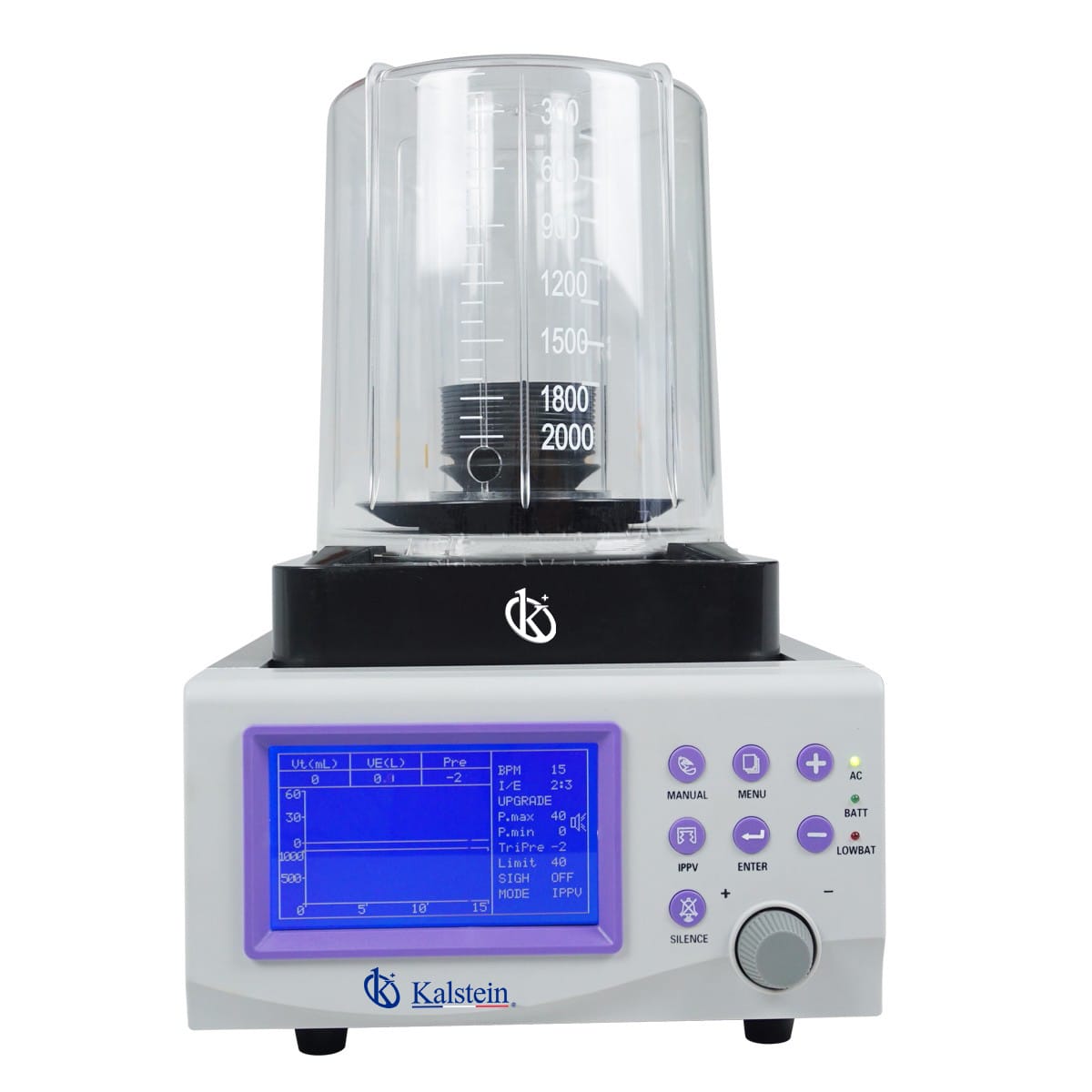

Veterinary Anesthesia Ventilator YR06102
The Veterinary Anesthesia Ventilator YR06102 is an advanced piece of veterinary medical equipment designed to provide cr…

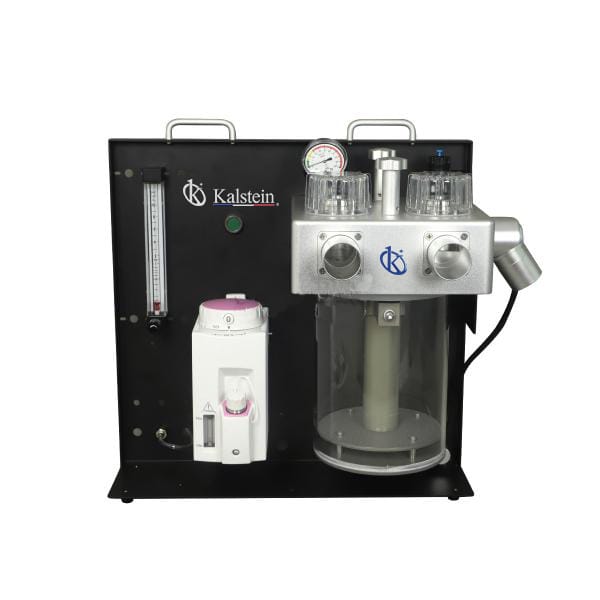

Large Animal Anesthesia Machine YR06098
Large Animal Anesthesia Machine YR06098 is a cutting-edge anesthesia device specially crafted by Kalstein for veterinary…
undefined
The Veterinary Anesthesia Ventilator YR06103 is a state-of-the-art solution designed specifically for veterinary use, offering a compact and space-saving design that ensures ease of transportation. Featuring an automatic calculation system based on the animal’s weight to optimize ventilation parameters, this ventilator provides reliability in diverse settings. Its advanced PCV mode facilitates automatic breathing support, catering comfortably to both small and large animals, and ensuring seamless integration with different brands of veterinary anesthesia machines.
The average price for high-quality veterinary anesthesia ventilators like the YR06103 ranges between 2900 USD to 3500 USD. Discover how this competitive pricing makes it an affordable yet indispensable tool for veterinary practices dedicated to providing the best care for their patients.
| Model | YR06103 |
| Display | 9-inch TFT touch screen |
| Gas type | O2 or Air |
| Inlet pressure | 280-600 kPa |
| Max flow | ≤ 120 L / min |
| Operating Mode | VCV, PCV, SPONT, Manual, Demo |
| Waveform | Pressure, Flow-rate, Volume |
| Loop | PV loop, PF loop, FV loop |
| Safety Pressure | System pressure does not exceed 6 KPa |
| Battery Type | Li-ion, work time more than 2 hours |
| Tidal volume Range | 20 – 1500ml |
| Respiratory rate Range | 1 ~ 150 bpm |
| Inspiratory time Range | 0.1 ~ 12s |
| Breathing ratio Range | 9.9:1 to 1:9.9 |
| Percentage of inspiratory pause Range | 0 to 50% |
| PEEP Range | OFF, 3 ~ 20 cmH2O |
| Support Pressure Range | 0 ~ 60 cmH2O |
| Inspiratory Pressure Range | 2 ~ 60 cmH2O |
| Flow trigger Range | 0.5 ~ 20L/min |
| Pressure Trigger Range | -1 ~ -20 cmH2O |
| PSV Insp Termination Level | 25% |
| Monitoring parameters | Inspiratory/Expiratory tidal volume Range:0 ~ 2500 mL |
| Minute ventilation | Display Range: 0 ~ 99L/min, Using Range: 0 ~ 25L/min |
| Spontaneous minute ventilation | Display Range: 0 ~ 99L/min, Using Range: 0 ~ 25L/min |
| Pea/Mean airway pressure Range | 0 ~ 80 cmH2O |
| FiO2(optional) Range | 15 to 100% |
undefined
The Revolution in Veterinary Care: A Deep Dive into Kalstein’s Veterinary Anesthesia Machines
In the rapidly evolving field of veterinary medicine, the introduction of the Veterinary Anesthesia Machine from Kalstein has marked a significant turning point…
Unveiling the Dynamics of Veterinary Anesthesia Machines: An Insight into Kalstein’s Innovations
When it comes to veterinary healthcare, anesthesia machines emerge as indispensable tools, ensuring optimal surgical outcomes and patient safety. Among the arra…
Discovering the World of Veterinary Anesthesia Machines: A Deep Dive into Kalstein’s Solutions
Kalstein’s Veterinary Anesthesia Machines have set a benchmark in the world of veterinary healthcare. Known for their precision, reliability, and innovati…
Comparative Analysis of Veterinary Anesthesia Systems: Kalstein Turbo-driven YR06101 vs. VetEquip Vapomatic
In the world of veterinary medicine, precision and reliability are paramount, especially when it comes to anesthesia machines. Two prominent products in this ca…
Catalog of models on offer
Veterinary Anesthesia System YR06687
Turbo-driven Veterinary Anesthesia Ventilator YR06104
Trolley Veterinary Anesthesia Machine YR06100

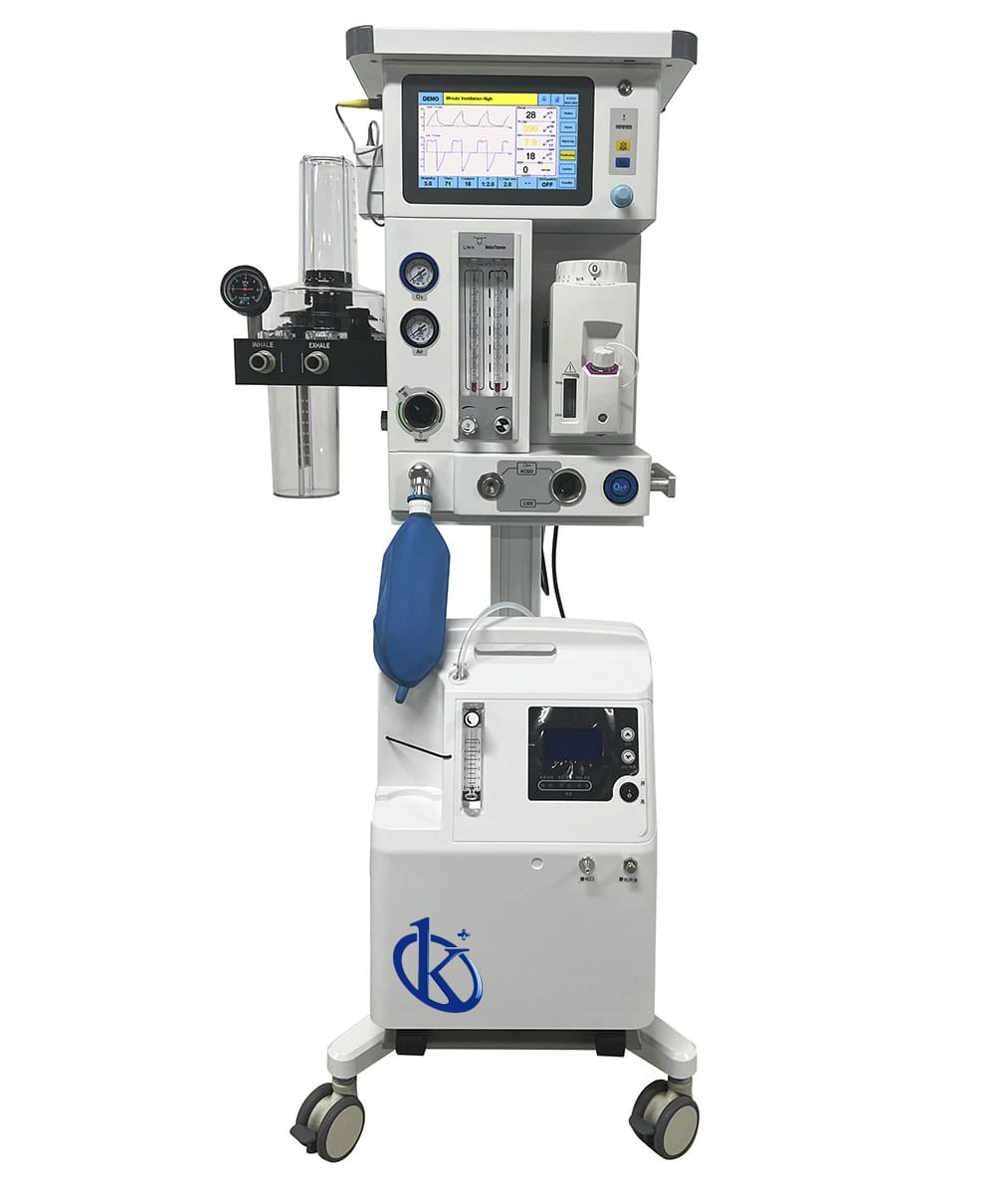

Turbo-driven Veterinary Anesthesia Machine YR06101
