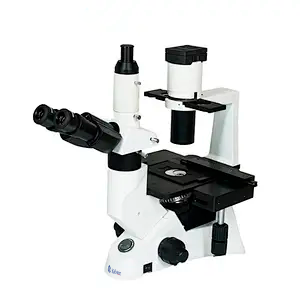

Common Errors and Troubleshooting by Symptoms for the YR0230 Inverted Microscope
The YR0230 Inverted Microscope is designed for observing live transparent and unprocessed samples in various laboratory settings. Despite its advanced technology and user-friendly design, operators may encounter some common errors. This article aims to delve into these errors categorized by symptoms and provide practical troubleshooting strategies.
Understanding the YR0230 and Its Purpose
The YR0230 model offers a range of features that make it ideal for biological and clinical applications. With its infinity optical system and trinocular head, it allows for precise observation and analysis of live samples. Understanding how to maximize these features can help mitigate errors related to sample observation.
Technical Specifications of the YR0230
| Specification | Details |
|---|---|
| Model | YR0230 |
| Optical System | Infinity Optical System |
| Head Type | Trinocular Seidentopf, inclined 30° |
| Eyepiece | Wide Field Eyepiece EW10x/22 mm, high eyepoint |
| Objective | Achromatic Infinity Plan LWD 4x/0.1, 40x/0.6 |
| Focusing Mechanism | Coaxial coarse and fine adjustment |
| Stage Size | 160 x 250 mm simple stage |
| Illumination | External Kohler illumination, 6V30W halogen bulb |
Troubleshooting by Symptoms
Equipment Does Not Power On
If the YR0230 does not power on, check the following possible causes:
- Power Source: Ensure that the power outlet is functional and that the microscope is properly plugged in.
- Fuse Issue: Inspect the fuse for any damage or burnout and replace it if necessary.
- Internal Wiring: Check for any loose connections within the microscope.
To fix the issue, verify the power supply and replace the fuse or repair internal wiring as needed.
Error Code E-03
This error may indicate a problem with the optical components. Steps to troubleshoot include:
- Objective Lens Check: Ensure that the correct objective lens is in place and properly secured.
- Condenser Position: Adjust the condenser to the appropriate height for the objective in use.
- Calibration: Recalibrate the optical system according to the manufacturer's instructions.
Resolving this error often involves careful checking and adjustment of optical components.
Inconsistent Readings
Inconsistent observations can stem from several factors:
- Sample Preparation: Ensure that samples are prepared and mounted correctly.
- Lighting Conditions: Verify that the halogen lamp is functioning properly, and the brightness is adjusted.
- Objective Quality: Inspect the objectives for cleanliness and scratches.
Address inconsistencies by standardizing sample preparation and ensuring optimal lighting conditions.
Symptom-Cause-Solution Overview
| Symptom | Possible Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Power outlet issue, fuse problem, internal wiring issue | Check power supply, replace fuse, inspect wiring |
| Error Code E-03 | Incorrect lens, condenser misalignment, calibration error | Check lens, adjust condenser, recalibrate |
| Inconsistent Readings | Poor sample preparation, lighting issues, objective quality | Standardize preparation, verify lighting, clean objectives |
Additional Considerations for YR0230 Operation
Regular maintenance and cleaning of the YR0230 are critical for ensuring optimal performance. Operators should follow a cleaning schedule and routinely check the optical components for any signs of wear or damage.
Frequently Asked Questions
What should I do if the YR0230 shows an error code I do not understand?
If you encounter an unfamiliar error code, refer to the user manual for detailed descriptions and troubleshooting steps. If further assistance is needed, contact customer support for guidance.
How do I maintain the optical components of the YR0230?
To maintain optical components, regularly clean lenses with lens tissue and appropriate cleaning solution. Avoid using rough materials that may scratch the surfaces.
What are the best practices for sample preparation with the YR0230?
Best practices include using clean glass slides, ensuring samples are evenly distributed, and using appropriate mounting media to avoid air bubbles.
Can I upgrade the objectives on my YR0230?
Yes, the YR0230 is compatible with various optional objectives that can enhance its functionality based on your specific needs.
How do I know if the halogen bulb needs replacing?
If the illumination appears dim or flickers, it may be time to replace the halogen bulb. Regular checks will help maintain consistent lighting conditions.
What accessories are recommended for the YR0230?
Recommended accessories include additional objective lenses, a mechanical stage, and various filters to enhance contrasting capabilities.
Where can I request a quote for the YR0230?
You can request a quote through our dedicated channels or by contacting our sales team directly for assistance.
