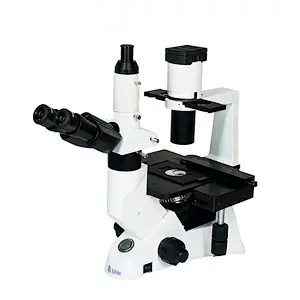

Inverted Trinocular Microscope YR0230
Inverted Trinocular Microscope YR0230 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Inverted Trinocular Microscope YR0230 is expertly designed for observing transparent and live specimens in culture containers. With its Infinity Optical System, extra wide field eyepiece, and high eye point plan achromatic objectives, it is the perfect tool for research on living specimen structures and liquid deposits. The Seidentopf trinocular head inclined at 30°, coupled with its coaxial coarse and fine adjustment controls, provides precision and ease of use for prolonged observation sessions.
Pricing Overview
In the competitive market of advanced laboratory microscopes, the Inverted Trinocular Microscope YR0230 typically falls in the price range of $1800 to $2600 USD. This range reflects its advanced features, durable build, and the cutting-edge optical technology it offers to researchers and laboratory professionals.
Frequently Asked Questions
Q: What type of specimens can be observed with this microscope?
A: This microscope is ideal for observing transparent and live specimens, making it suitable for biological and biomedical research applications.
Q: Is it possible to use this microscope for educational purposes?
A: While it is primarily designed for research purposes, it can also be effectively used in educational settings for demonstrations and academic investigations.
Advantages and Disadvantages
Advantages: High-quality optics allow for clear and precise specimen observation. Its long working distance and diopter adjustment provide improved user comfort and flexibility.
Disadvantages: The complexity of the instrument may require additional training for users less familiar with advanced microscopy equipment.
Product Use in the Field
This microscope excels in laboratory settings focusing on biological research. Its ability to observe live specimen movements and structural changes in real-time makes it an invaluable tool for research in cell biology, microbiology, and related fields. It's also suited for examining liquid deposits with phase contrast capabilities, providing exceptional clarity in difficult observations.
Recommendations
Regular maintenance and proper handling are essential to preserve the microscope's functionality. We recommend using the included auxiliary stage and various optional adapters to expand its capabilities further. Ensure that the microscope is stored in a stable environment to prevent any damage to its optical system.
Features
- Infinity Optical System for high-quality imaging
- Seidentopf Trinocular Head with 30° inclination
- Extra Wide Field Eyepiece EW10x/22mm
- Coaxial coarse and fine adjustment for precise focusing
- Long working distance objective lenses
Technical Specifications
| Model | YR0230 | ||
| Optical System | Infinity Optical System | ||

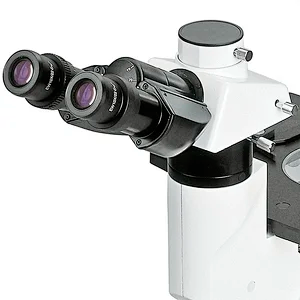

| Head | Seidentopf Trinocular Head, 30° Inclined, | ||
| Interpupillary 48~75mm, Diopter Adjustable | |||
| Eyepiece | Extra Wide Field Eyepiece EW10x/22mm, High Eye point | ||
| Nosepiece | Quintuple Nosepiece | ||
| Objective | Infinity Plan LWD Achromatic Objective | 4x/0.1, W.D.18mm | |
| 40x/0.6, W.D.2.6mm,Cover Glass 1.2mm | |||
| Infinity Plan Phase Contrast Achromatic Objective | PH10x/0.25, W.D.10mm | ||
| PH20x/0.40, W.D.5.1mm | |||
| Focusing | Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per | ||
| Rotation | |||
| Working Stage | Plain Stage 160*250mm | ||
| –Glass Insert Plate | |||
| –Auxiliary Stage 70*180mm | |||

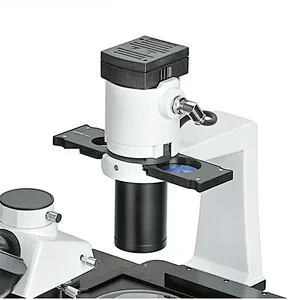

| Condenser | ELWD Condenser N.A.0.3, Long Working Distance 72mm, Up to 150mm Without Condenser | ||
| Phase Contrast | –Centering Telescope, Tube Dia.30mm | ||
| –Phase Contrast Slide, 2 Holes For 10x-20x Objective | |||
| Filter | Green, Blue, Ground Glass, Dia.45mm | ||
| Illumination | External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable | ||
| Adapter | Eyepiece Adapter Dia.23.2mm | ||
| Inverted Laboratory Biological Microscope Optional Accessories | |||
| Objective | Infinity Plan LWD Achromatic Objective | 10x/0.25,W.D.10mm | YR0230-op1 |
| 20x/0.4,W.D.5.1mm | YR0230-op2 | ||
| Phase Contrast | Infinity Plan Phase Contrast Achromatic Objective | PH40x/0.6,W.D.0.35mm | YR0230-op3 |
| Phase Contrast Slide, 3 Holes For 10x-20x-40x Objective | YR0230-op4 | ||
| Working Stage | Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm | YR0230-op5 | |
| Ergonomic Stage Knob’s Height & Position Along Y-Axis Movable To Where It | |||
| Is Most Comfortable, Tightness Adjustable | |||
| Terasaki Holder, Inner Holding Size 56x88mm | YR0230-op6 | ||
| Petri Dish Holder Dia.38mm | YR0230-op7 | ||
| Slide Glass Holder Dia.54mm | YR0230-op8 | ||
| Slide Glass Holder Dia.90mm | YR0230-op9 | ||
| Adapter | Photo Adapter | YR0230-op10 | |
| C-Mount 1.0x | YR0230-op11 | ||
| C-Mount 0.45x | YR0230-op12 | ||
| Fluorescent | Fluorescent Attachment | YR0230-op13 | |
Technical specifications
| Dimensions | L 46.8 × W 39.7 × H 66.5 cm |
|---|---|
| Weight | 15.5 kg |
| Manufacturer | Kalstein |

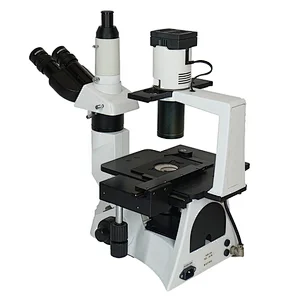

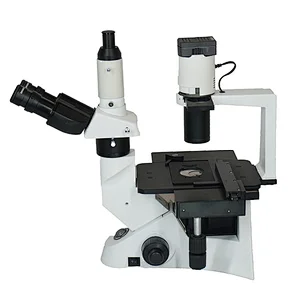

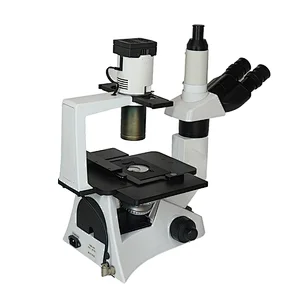

Image gallery
