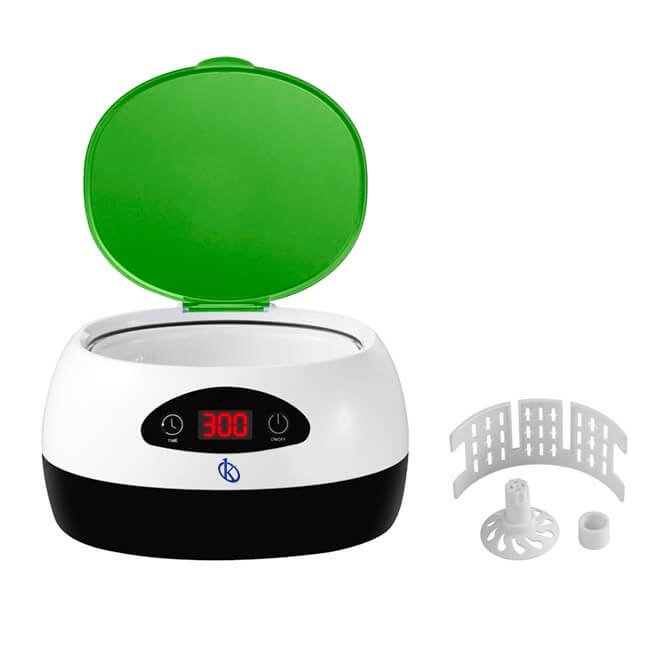

Understanding the Operating Principle of the YR05229 Ultrasonic Cleaner
The YR05229 Ultrasonic Cleaner is a sophisticated household cleaning device that utilizes ultrasonic technology to achieve deep cleaning. This article delves into the scientific fundamentals and operating principles that underpin the YR05229, as well as its practical applications and features.
Scientific Principles Behind Ultrasonic Cleaning
Ultrasonic cleaning operates on the principle of cavitation, which occurs when ultrasonic waves generate rapid pressure changes in a liquid. This phenomenon creates microscopic bubbles that collapse violently, producing high-energy shock waves that dislodge dirt, grease, and contaminants from surfaces.
The frequency of 42 KHz in the YR05229 is specifically chosen to optimize cavitation effects while ensuring the safety of the items being cleaned, making it suitable for delicate objects like jewelry and lenses.
Key Features of the YR05229 Ultrasonic Cleaner
| Feature | Description |
|---|---|
| Production and Aging Process | Strict quality control measures ensure the reliability of the ultrasonic cleaner. |
| High Voltage Safety Testing | Tested at 2500 V HV to guarantee product safety standards. |
| High-Quality Piezoelectric Ceramic Sheet | Ensures efficient ultrasonic wave generation. |
| Adjustable Working Time | Operating time can be set between 1 to 5 minutes to suit various cleaning needs. |
Technical Specifications of YR05229
| Specification | Details |
|---|---|
| Model | YR05229 |
| Packaging Size | 205 x 145 x 125 mm |
| Internal Slot Size | 168 x 110 x 52 mm |
| Tank Capacity | 0.6 L |
| Voltage | AC110-120V 60Hz / AC220-240V 50Hz |
| Power | 50W |
| Ultrasonic Frequency | 42KHz |
| Adjustable Timer | 1-5 minutes |
| Net Weight | 1.2 Kg |
Applications of YR05229 Ultrasonic Cleaner
The YR05229 Ultrasonic Cleaner is versatile and can be used in various settings, including:
- Jewelry Cleaning: Effectively cleans intricate designs and settings.
- Optical Lens Cleaning: Gently removes dust and smudges without scratching.
- Electronic Component Cleaning: Cleans circuit boards and other electronic parts without damage.
- Industrial Cleaning: Suitable for small parts in manufacturing processes.
Common Issues and Solutions with YR05229
Users may experience some common issues when operating the YR05229. The following table outlines potential problems and solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | No power supply or faulty outlet. | Check the power source and connections. |
| Inconsistent Cleaning Results | Incorrect cleaning time or insufficient solution. | Adjust time settings and ensure proper tank fill. |
| Error Code E-03 | Overheating or internal malfunction. | Allow equipment to cool down; consult manual for further troubleshooting. |
Frequently Asked Questions
What is the principle of operation for the YR05229 Ultrasonic Cleaner?
The YR05229 operates on the principle of ultrasonic cavitation, where high-frequency sound waves create microscopic bubbles that implode and dislodge contaminants from surfaces, providing an effective cleaning action.
How long should I run the YR05229 for optimal cleaning?
The cleaning time can be adjusted between 1 to 5 minutes, depending on the level of dirtiness and the type of items being cleaned.
Can I use the YR05229 for cleaning delicate items?
Yes, the YR05229 is designed to clean delicate items such as jewelry and optical lenses safely without causing damage.
What maintenance is required for the YR05229?
Regularly clean the tank and ensure that the ultrasonic transducer is free from debris. Follow the manufacturer's guidelines for long-term maintenance.
Are there any specific cleaning solutions recommended for use with the YR05229?
It is advisable to use mild cleaning solutions that do not contain harsh chemicals, as they can be harmful to both the cleaner and the items being cleaned.
What should I do if I encounter an error code on the YR05229?
Refer to the user manual for specific error codes and troubleshooting steps. Common errors often have straightforward solutions outlined in the documentation.
Where can I request a quote for the YR05229 Ultrasonic Cleaner?
For quotes and inquiries, please contact us directly. We will provide you with the necessary information to assist with your purchase.
