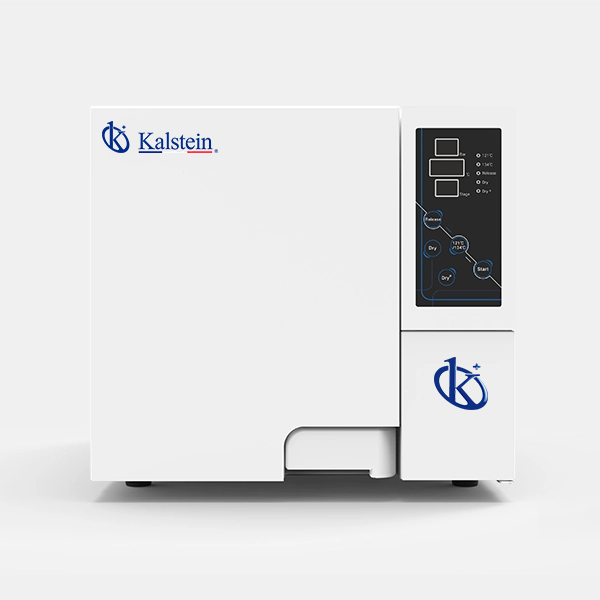

Understanding Measurement Interpretation with the YR03396 Autoclave
The YR03396 Class N Table Autoclave is engineered for semi-automatic sterilization processes, essential in various clinical and laboratory environments. This article aims to unravel the complexities of interpreting results and readings associated with the YR03396 model, ensuring that operators can fully leverage its capabilities while adhering to best practices for sterilization.
Technical Overview of the YR03396 Autoclave
| Model | Voltage | Power | Sterilization Temperature | Sterilization Time | Drying Option |
|---|---|---|---|---|---|
| YR03396 | 220-240V / 50Hz, 110-120V / 60Hz | 1500W | 121/134°C | 30-60 min adjustable (121°C); 10-60 min adjustable (134°C) | Yes (optional) |
The Importance of Accurate Measurement Interpretation
Understanding the readings displayed by the YR03396 is crucial for ensuring effective sterilization. The autoclave utilizes high precision temperature control, capable of displaying temperatures to an accuracy of 0.01°C. This precision is vital in preventing under or over sterilization, which can lead to contamination.
Common Misinterpretations and How to Avoid Them
Operators may encounter various challenges when interpreting readings from the YR03396. Here are some common misinterpretations:
- Pressure Indicators: Ensure that operators understand that the pressure gauge must only indicate normal operating pressures during cycles. Any abnormalities should be flagged for immediate inspection.
- Temperature Fluctuations: Temporary fluctuations can occur during the sterilization cycle. Operators should monitor these and refer to the settings to ensure they align with laboratory protocols.
- End Cycle Notifications: Confirm that operators are familiar with the audio and visual signals indicating the end of a cycle. Failing to observe these can lead to unnecessary delays in loading the next batch.
Reading the Display and Printout
The YR03396 is equipped with a user-friendly LED display that shows real-time temperature and pressure readings. It is essential for operators to:
- Regularly monitor the display during cycles to ensure parameters remain within the specified range.
- Understand the significance of the printout, which serves as a permanent record of each sterilization cycle, including time, temperature, and pressure.
Adjusting Sterilization and Drying Times
The YR03396 allows operators to adjust both sterilization and drying times according to specific requirements. The adjustable options include:
- Sterilization times can be set between 30 to 60 minutes for 121°C and 10 to 60 minutes for 134°C, accommodating various load types.
- For drying, if applicable, times can also be adjusted from 1 to 60 minutes based on the items being sterilized.
Safety Features and Their Importance in Measurement Interpretation
Safety features of the YR03396 are designed to protect both the operator and the equipment. Key features include:
- Pressure Lock: Prevents the door from being opened when the chamber is under pressure, ensuring safety during operation.
- Overheating Protection: Automatically shuts off the device if temperatures exceed safe levels.
- Automatic Pressure Release: Engages after each cycle, ensuring the chamber is safe to open.
Frequently asked questions
How can I ensure accurate readings from the YR03396 Autoclave?
Regular calibration, proper maintenance, and understanding the user manual are essential for ensuring accurate readings. Ensure that the pressure and temperature gauges are functioning correctly during every cycle.
What steps should I take if the pressure gauge shows an abnormal reading?
If the pressure gauge indicates an abnormal reading, immediately stop the cycle and check for possible blockages in the chamber or piping. Ensure that the autoclave is venting properly and reset if needed.
How do I interpret the printout from the YR03396 Autoclave?
The printout from the YR03396 includes crucial data such as cycle time, temperature, and pressure. It serves as a permanent record for compliance and should be reviewed after each cycle for discrepancies.
What could cause inconsistent temperature readings in the YR03396?
Inconsistent temperature readings might be caused by improper loading, faulty sensors, or calibration issues. Regular maintenance and proper loading techniques should alleviate these problems.
How often should I perform maintenance on the YR03396 Autoclave?
Routine maintenance should be performed based on the manufacturer's guidelines. Generally, it is advisable to conduct thorough checks and servicing every six months and after every significant usage period.
What is the best way to troubleshoot common issues with the YR03396 Autoclave?
Begin by checking the user manual for error codes and diagnostic procedures. Maintain a troubleshooting log to track recurring issues, and address each systematically to minimize downtime.
Where can I find spare parts for the YR03396 Autoclave?
Spare parts can typically be sourced from the manufacturer or authorized distributors. Ensure that any replacement parts are compatible with the YR03396 model to maintain optimal performance.
