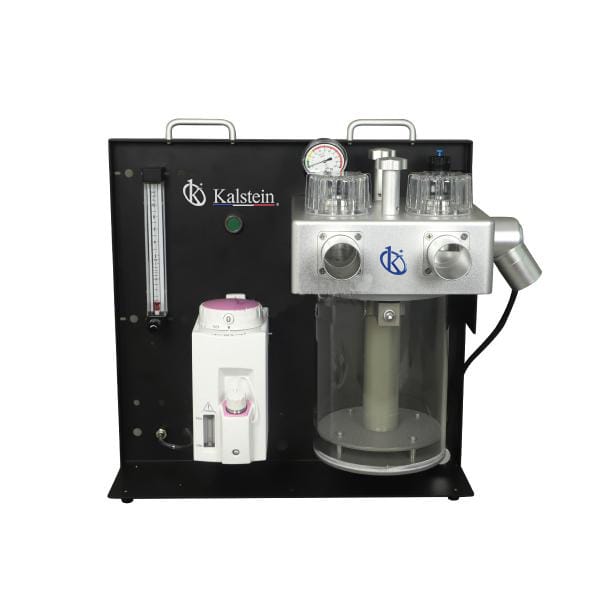

Technical Glossary and Key Terminology of the YR06098 Anesthesia Machine
The YR06098 Anesthesia Machine is a sophisticated device specifically designed for use with large animals, including horses, cattle, and more, in various settings such as zoos, veterinary clinics, and research facilities. Understanding the terminology associated with this machine is essential for effective operation and maintenance. This glossary aims to clarify key terms and concepts related to the YR06098.
Technical Data Table for YR06098
| Specification | Details |
|---|---|
| Model | YR06098 |
| Ventilation Mode | manual mode, spontaneous mode |
| O2 Gas Source | 0.3~0.4 MPa (3-4 bar or 43.5psi-58psi) |
| O2 Flow Meter | 0-10L/min |
| O2 Flush Valve | 25L/min~75L/min |
| Soda Lime Canister | 8L, easy to change other size |
| Air Bag | 30L |
| APL (Pop-Off) Valve | 0~60cmH2O |
| Breathing Pressure Gauge | -20cmH2O~100cmH2O (-1.96Kpa~9.6Kpa) |
| Vaporizer | Isoflurane (Sevoflurane, Enflurane, or Halothane is optional) |
| CO2 Circle Absorber | including soda lime canister, Pop-off valve, breathing pressure gauge, inspiratory valve, and expiratory valve |
| Max. Animal Weight | 1200kg |
| Trolley | 470mm*510mm*1400mm (L*D*H), optional |
Glossary of Key Terms for YR06098
| Term | Definition |
|---|---|
| Anesthesia Machine | A device used to deliver anesthetic gases to animals, ensuring their safety and comfort during surgical procedures. |
| Isoflurane | A volatile anesthetic used in the YR06098 to induce and maintain anesthesia in large animals. |
| Soda Lime | A chemical compound used in the CO2 circle absorber to remove carbon dioxide from the exhaled gases. |
| APL (Pop-Off) Valve | A safety valve that prevents the build-up of excessive pressure in the breathing circuit. |
| Ventilation Mode | The method by which the machine assists or controls the breathing of the animal, either manually or spontaneously. |
| Breathing Pressure Gauge | A device that measures the pressure within the breathing circuit to monitor ventilation effectiveness. |
| Flow Meter | A component that measures the flow rate of oxygen being delivered to the animal. |
| Air Bag | A collapsible bag used to store inhaled anesthetic gases and to provide a reservoir of air for the animal. |
| Vaporizer | An instrument that converts liquid anesthetics into vapor form for inhalation by the animal. |
| CO2 Circle Absorber | A system that recirculates exhaled gases, removing CO2 to allow for rebreathing of oxygen. |
Frequently Asked Questions
What is the maximum animal weight the YR06098 can handle?
The YR06098 Anesthesia Machine is designed to accommodate animals weighing up to 1200 kg, making it suitable for large animals such as horses and cattle.
How does the vaporizer function in the YR06098?
The vaporizer in the YR06098 converts liquid anesthetics, such as isoflurane, into vapor form. This vapor is then mixed with oxygen and delivered to the animal, ensuring effective anesthesia during procedures.
What types of ventilation modes are available on the YR06098?
The YR06098 offers manual and spontaneous ventilation modes. The manual mode allows the operator to control the breathing rate, while the spontaneous mode permits the animal to breathe independently with assistance from the machine.
What should be monitored to ensure safe anesthesia delivery with the YR06098?
It is crucial to monitor the breathing pressure gauge, flow meter, and APL valve to ensure that anesthesia is delivered safely and effectively to the animal. Proper calibration and regular checks can prevent complications.
How often should the soda lime canister be changed in the YR06098?
The soda lime canister should be changed regularly, depending on usage. It is essential to monitor the color change indicators of the soda lime to determine when it needs replacement.
Can the YR06098 be used in different veterinary settings?
Yes, the YR06098 is versatile and can be utilized in various veterinary settings, including zoos, research institutions, and equine surgical facilities, providing flexible operation across different environments.
How can I request a quote for the YR06098?
You can request a quote by contacting our sales department directly. We will assist you in the process and provide you with all necessary information regarding pricing and availability.
