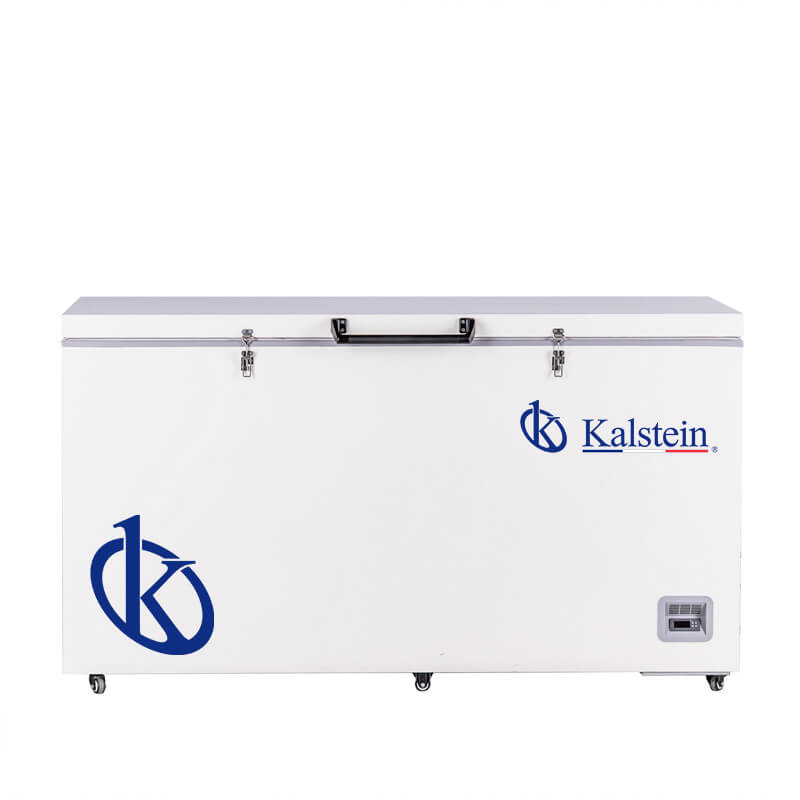

Technical Glossary and Key Terminology for the YR05104 Horizontal Freezer
The YR05104 Horizontal Freezer is a sophisticated piece of laboratory equipment designed for efficient and reliable storage of sensitive materials. Understanding the technical terminology associated with this model is essential for optimal operation, maintenance, and troubleshooting. This article presents a detailed glossary of key terms related to the YR05104, catering to operators and technicians who work with this advanced refrigeration technology.
Understanding the YR05104 Through Key Terminology
Operational proficiency with the YR05104 requires familiarity with specific terminology that defines its functionality and features. Below, we outline important terms that relate closely to the operation, specifications, and maintenance of this freezer model, enabling operators to navigate their tasks with confidence and clarity.
Technical Data Table for YR05104
| Specification | Details |
|---|---|
| Model | YR05104 |
| Type | Horizontal Freezer |
| Cooling Method | Direct cooling |
| Refrigerant | R290 |
| Temperature Range | -20 to -40 °C |
| Power Consumption (kWh/23h) | 3.45 |
| Noise Level (dB) | 55 |
| Dimensions (WxDxH, mm) | 1670 x 810 x 930 |
| Weight (kg) | 108 |
| Alarm Features | High/low temperature, power failure, sensor error |
Glossary of Key Terms
| Term | Definition |
|---|---|
| Refrigerant | A substance used in a cooling mechanism that absorbs heat and provides a cooling effect. The YR05104 uses R290, an environmentally friendly refrigerant. |
| Microprocessor Control | A digital control system that allows for precise temperature adjustments and monitoring within the freezer. |
| Direct Cooling | A cooling method where the refrigerant circulates directly in contact with the internal surfaces, providing efficient cooling. |
| Temperature Range | The operational limits within which the freezer maintains its internal temperature, specifically from -20 to -40 °C for the YR05104. |
| Alarm System | A safety feature that provides audible and visual alerts for various malfunctions, including temperature irregularities. |
| Power Consumption | The amount of energy used by the freezer, measured in kilowatt-hours over a specified period (3.45 kWh in 23 hours for the YR05104). |
| Noise Level | A measure of sound output from the unit, with the YR05104 producing 55 dB, indicating its operational noise. |
| Digital Display | A graphical interface that shows real-time temperature, operational status, and alerts, facilitating user interaction and monitoring. |
| High-Density Foam Insulation | A thermal insulation material that minimizes energy loss and maintains internal temperature by reducing heat transfer. |
| Maintenance Interval | The recommended frequency for servicing and upkeep of the freezer to ensure optimal performance and longevity. |
FAQ
What is the purpose of the R290 refrigerant in the YR05104?
R290 is a hydrocarbon refrigerant that is known for its low environmental impact and efficiency. It is used in the YR05104 to provide effective cooling while being safer for the environment compared to traditional refrigerants.
How does the microprocessor control enhance the performance of the YR05104?
The microprocessor control allows for precise temperature regulation and monitoring, enabling users to set and maintain the desired temperature range efficiently, thus ensuring reliable sample preservation.
What should I do if the alarm system goes off in the YR05104?
When the alarm system activates, check the displayed error code and ensure that the door is closed, the temperature is within range, and that there are no power failures. Refer to the user manual for specific troubleshooting steps based on the alarm type.
What kind of maintenance is recommended for the YR05104?
Regular maintenance includes cleaning the condenser, checking the door seals, and testing the alarm systems. It's also important to monitor the performance periodically to ensure the unit operates within specified parameters.
What are the dimensions and capacity of the YR05104?
The YR05104 has external dimensions of 1670 x 810 x 930 mm and a storage capacity of 485 liters (or approximately 17.12 cubic feet), making it suitable for substantial sample storage needs in various laboratory settings.
What is the noise level of the YR05104 during operation?
The YR05104 operates at a noise level of 55 dB, which is comparable to a normal conversation, ensuring that it can be used in quiet laboratory environments without causing significant disturbance.
How does the insulation in the YR05104 affect its energy efficiency?
The high-density foam insulation minimizes heat transfer, which reduces energy consumption and helps maintain the internal temperature. This design choice contributes to the overall energy efficiency and operational cost-effectiveness of the YR05104.
