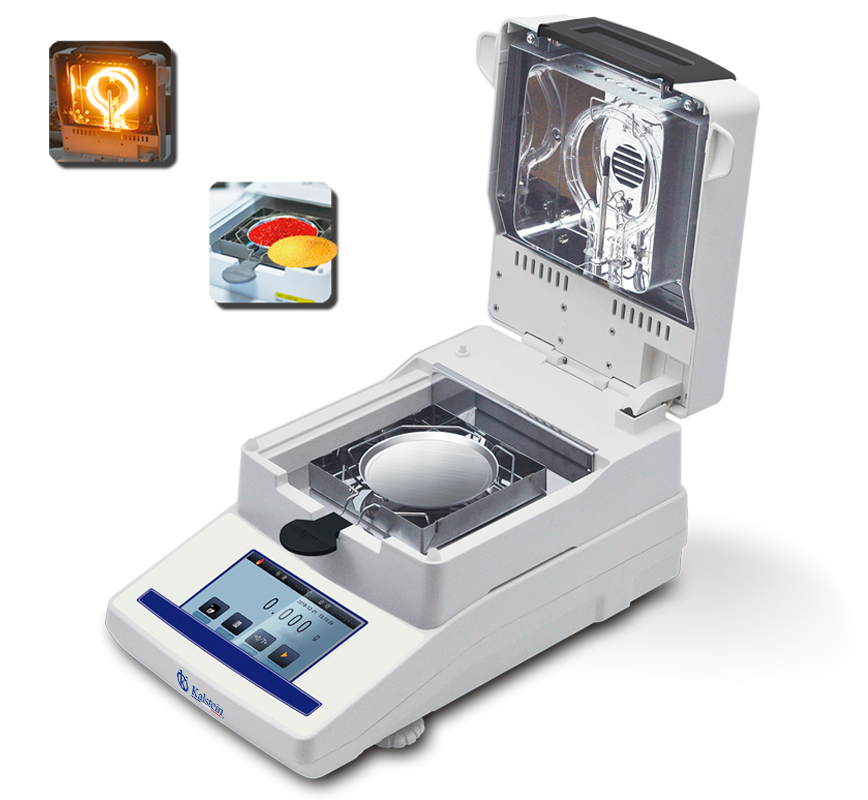

Site Requirements and Environmental Conditions for the YR05557 Halogen Moisture Analyzer
The YR05557 Halogen Moisture Analyzer is a critical piece of laboratory equipment designed for moisture content analysis in various materials. To ensure this device operates at peak efficiency, it's crucial to understand the environmental conditions and installation requirements that will support its functionality. This article provides an in-depth examination of these factors, focusing on aspects such as operational temperature, humidity, and site preparation.
Technical Data of the YR05557
| Specification | Detail |
|---|---|
| Model | YR05557 |
| Capacity | 110g |
| Readability | 0.001g |
| Operating Temperature | 5℃-35℃ |
| Monitor | 5-inch Touchscreen |
| Calibration | External Calibration |
| Interface | RS232/RJ45/USB |
| Pan Size | Ø90mm |
| Package Size | 490x350x360mm |
| Gross Weight | 7.5 kg |
| Heating Source | Halogen Lamp |
| Temperature Sensor | PT100 |
| Temperature Range | 40℃-199℃ |
| Humidity Range | 0.00%-100.00% |
Installation Requirements for Optimal Performance
When installing the YR05557 Halogen Moisture Analyzer, several environmental conditions must be considered to ensure accurate measurements and long-lasting performance:
- Temperature Control: The device should operate within the temperature range of 5℃ to 35℃. Excessive heat or cold can affect the moisture readings and lead to inaccurate results.
- Humidity Levels: The analyzer should be placed in an environment where humidity levels are controlled. Ideally, the surrounding environment should not exceed 60% relative humidity to avoid condensation on the equipment.
- Vibration Management: Ensure that the analyzer is installed on a stable surface, minimizing vibrations which could cause measurement fluctuations.
- Electrical Supply: The YR05557 requires a stable power supply of 220V ±15% 50HZ or 110V ±15% 60HZ. Fluctuations in voltage can cause equipment malfunctions.
- Ventilation Needs: Adequate ventilation around the analyzer is crucial to prevent overheating, particularly when the halogen lamp is in operation.
Environmental Considerations
Setting up the YR05557 requires careful consideration of its operating environment:
- Clearances: Ensure there is sufficient space around the analyzer for maintenance and operation. Ideally, the equipment should not be placed in cramped quarters.
- Drainage Needs: If the setup includes any potential water usage, ensure there is a drainage system in place to prevent water accumulation around the device.
- Gas and Water Supplies: If necessary, integrate systems for gas supplies (if applicable) without compromising the safety and functionality of the moisture analyzer.
Site Preparation Checklist
| Preparation Step | Description |
|---|---|
| Temperature Control | Ensure the installation area maintains temperatures between 5℃ and 35℃. |
| Humidity Monitoring | Check that the area does not exceed 60% relative humidity. |
| Surface Stability | Confirm that the surface is flat and stable to minimize vibrations. |
| Power Supply | Verify that the electrical supply is stable and meets voltage requirements. |
| Ventilation | Ensure adequate ventilation is available to prevent overheating. |
| Clearance Space | Provide sufficient space around the analyzer for operation and maintenance. |
| Drainage Setup | If applicable, ensure drainage systems are in place. |
Frequently Asked Questions
What are the ideal temperature and humidity conditions for the YR05557?
The YR05557 operates best at temperatures between 5℃ and 35℃ and relative humidity levels below 60%. These conditions help ensure accurate moisture content readings.
How do I calibrate the YR05557 Halogen Moisture Analyzer?
The YR05557 requires external calibration. It is crucial to follow the manufacturer's instructions for calibration to ensure accurate measurements.
What maintenance is required for the YR05557?
Regular maintenance includes cleaning the pan, checking the halogen lamp, and ensuring the device remains free from dust and moisture build-up. Regular inspections will help prolong equipment life.
How can I troubleshoot common issues with the YR05557?
If you encounter issues such as inconsistent readings or error codes, refer to the troubleshooting guide in the user manual, which outlines common problems and solutions.
Is there a warranty period for the YR05557?
The warranty period typically covers one year from the date of purchase. It is advisable to check the warranty terms with the supplier for specifics.
Are there any specific installation requirements for the YR05557?
Yes, the YR05557 should be installed in a controlled environment that maintains appropriate temperature and humidity levels, with adequate ventilation and electrical supply.
Can I request a quote for the YR05557?
Please reach out to our sales team for a personalized quote on the YR05557 Halogen Moisture Analyzer.
