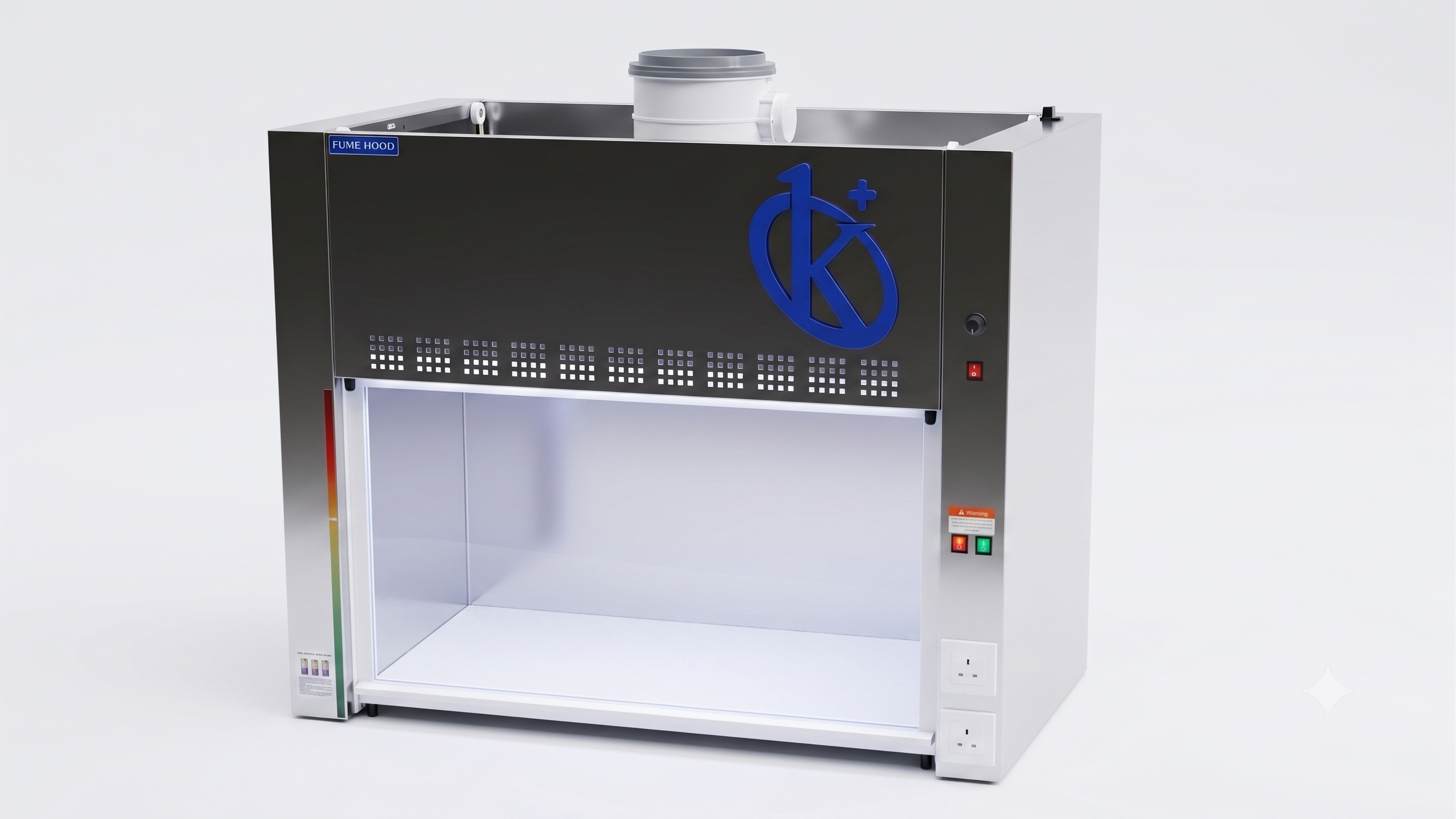

The Kalstein YR05810-SS Fume Extraction Hood has been designed to provide a safe working environment when handling chemicals, solvents, reagents, and other compounds that generate potentially hazardous vapors or gases. Thanks to its efficient extraction system, it helps reduce the concentration of contaminants in the work area, protecting the operator and improving safety conditions within the laboratory.

Made entirely of 1.0 mm thick AISI 304 stainless steel, the YR05810-SS offers high resistance to corrosion, humidity, and aggressive chemical agents, ensuring a long service life even in demanding work environments. Its compact desktop design facilitates installation on laboratory benches, allowing for optimal use of available space without compromising functionality.

With external dimensions of 1200 × 650 × 1000 mm, this hood provides ample space for handling reagents and laboratory materials. It incorporates a 5 mm thick sliding tempered glass front window, which provides excellent visibility of the work area and acts as a protective barrier against splashes and vapors, maintaining comfortable and safe access for the user.

The extraction system is equipped with a 110 W axial fan with a speed regulator, capable of generating an adjustable air surface speed between 0.3 and 0.8 m/s, adapting to the specific needs of each procedure. The air is evacuated through a Ø250 mm flexible extraction duct, 3 meters long, facilitating its connection to external ventilation systems.

The work area is illuminated by a 10 W LED lamp, which provides uniform, low-consumption, and long-lasting lighting. Additionally, the unit includes three splash-resistant multifunction outlets rated at 10 A, allowing for the safe connection of auxiliary equipment. The configuration of the outlets can be customized according to the electrical requirements of the destination country.

The Kalstein YR05810-SS operates on 220 V / 60 Hz power supply and is supplied in knock-down packaging with a reinforced cardboard box, facilitating transport, reducing logistics costs, and simplifying installation.

Market Price (2900)

Desktop fume extraction hoods made entirely of AISI 304 stainless steel, equipped with adjustable ventilation and integrated electrical accessories, have an average market price ranging from €2,700 to €3,300, depending on the manufacturer, extraction system, and equipment features.

The Kalstein YR05810-SS Fume Hood, with a reference price of €2,900, offers an excellent balance between quality, safety, and functionality. Its construction in AISI 304 stainless steel, the adjustable speed axial fan, the tempered glass front window, the LED lighting, and the multifunction outlets make it a reliable and durable solution for chemistry laboratories, research, quality control, and the pharmaceutical industry that require efficient extraction of vapors and gases during their processes.

Frequently Asked Questions

What is the main function of this hood?

It is designed to extract vapors, fumes, and gases generated during chemical procedures, reducing operator exposure and improving laboratory safety.

Does it protect samples from contamination?

No. Its main function is to protect the operator by extracting vapors and gases. If sample protection is required, it is recommended to use a laminar flow cabinet.

Can the air speed be adjusted?

Yes. The axial fan includes a regulator that allows adjusting the airflow speed between 0.3 and 0.8 m/s, adapting to different applications.

What type of lighting does it incorporate?

It has a 10 W LED lamp, which provides uniform and efficient lighting of the work area.

Can the outlets be customized?

Yes. The outlets can be configured according to the customer's electrical needs and the regulations of the installation country.

Advantages and Disadvantages

Advantages

• Entirely made of AISI 304 stainless steel.

• Excellent resistance to corrosion and chemicals.

• Compact desktop design.

• 5 mm thick sliding tempered glass front window.

• 110 W axial fan with adjustable speed.

• Adjustable airflow between 0.3 and 0.8 m/s.

• 3-meter flexible extraction duct included.

• Low-consumption LED lighting.

• Three splash-resistant multifunction outlets.

• Easy cleaning and maintenance.

• Simple installation.

• Ideal for laboratories with limited space.

Disadvantages

• Requires connection to an external air extraction system.

• Does not provide sterile protection for samples.

• Not designed for handling high-risk biological agents.

• Does not include a work surface, as it is designed to be installed on a laboratory bench or table.

Field Use

The Kalstein YR05810-SS Fume Extraction Hood is ideal for laboratories where chemicals that generate potentially hazardous vapors or gases are handled. Its compact design allows for easy integration into different workstations, providing efficient extraction and contributing to improved personnel safety.

It is widely used in:

• Chemistry laboratories.

• Pharmaceutical laboratories.

• Scientific research laboratories.

• Universities and educational institutions.

• Clinical laboratories.

• Quality control laboratories.

• Chemical industry.
