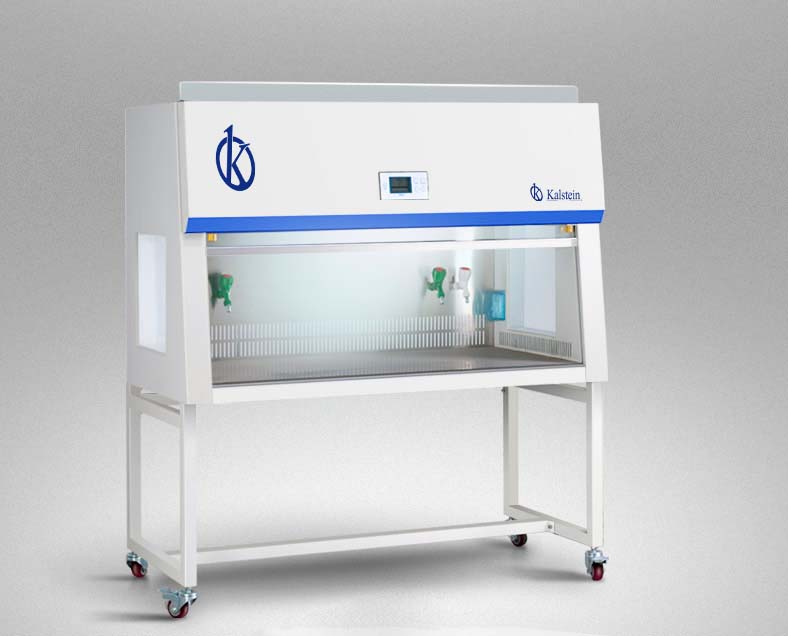

Laminar Flow Cabinet (Double Person) YR05268-1 // YR05269-1
Laminar Flow Cabinet (Double Person) YR05268-1 // YR05269-1 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Laminar Flow Cabinet (Double Person) YR05268-1 // YR05269-1 is a state-of-the-art laboratory solution designed to deliver a highly purified working environment. This cabinet is particularly suitable for applications in biotechnology, pharmaceuticals, life sciences, and precision electronic device manufacturing. With its CLEANFLOW™ clean air technology, it ensures unidirectional airflow, which is critical for maximum safety of operators and the integrity of products handled. The ergonomic and mechanically optimized design includes an LCD screen for real-time monitoring of critical parameters such as lighting, sterilization, and airflow, which facilitates safe and efficient laboratory operations.
Market Price
The market price of the Laminar Flow Cabinet YR05268-1 // YR05269-1 generally varies between $1800 and $2600, depending on the supplier and additional specifications. This range represents the equipment's top-tier quality, durability, and advanced technologies, including a dual filtration system with high-efficiency HEPA filters and adjustable wind speed options. These exceptional features make it an ideal choice for laboratories and industrial environments requiring stringent cleanliness and safety standards.
Frequently Asked Questions
- Is the cabinet difficult to operate? The cabinet is extremely user-friendly, thanks to its LCD control interface and intuitive design.
- What is the efficiency of the HEPA filter? It boasts a HEPA filter with a retention efficiency of 99.99%, ensuring a contaminant-free work environment.
- How many operators can use this cabinet at the same time? It is designed to accommodate simultaneous use by two people, promoting collaborative laboratory work.
Advantages and Disadvantages
The Laminar Flow Cabinet YR05268-1 // YR05269-1 offers numerous advantages, including robust construction, an efficient filtration system, and the ability to maintain a pristine working environment. Its low-energy centrifugal motor ensures quiet operation, which is ideal for settings that require concentration and precision. However, its size may be a limitation in laboratories with restricted space.
Product Usage in the Field
This cabinet is extensively used in biotechnology and pharmaceutical laboratories, where contamination protection is paramount. It also proves beneficial in the production of precision electronic devices, demanding tight environmental control to ensure product quality. The design facilitates real-time collaboration for up to two users, enhancing team productivity and efficiency.
Recommendations
To ensure optimal performance and longevity of the Laminar Flow Cabinet YR05268-1 // YR05269-1, regular maintenance is crucial. This encompasses periodic HEPA filter checks and replacements and calibration of the ventilation system to maintain optimal airflow. Regular verification of UV sterilization functions ensures sustained sterility in the working environment. Don't miss the chance to upgrade your lab's operational safety and precision. Reach out for a quote now via Kalstein Plus and explore how this equipment can fulfill your laboratory's needs.
Key Features
- Optimized mechanical design with ergonomic features.
- Real-time monitoring via integrated LCD screen.
- Dual filtration system with high-efficiency HEPA filters.
- Low noise operation at ≤62 dB.
Technical Specifications
| Model | YR05268-1 / YR05269-1 |
| Cleanliness Rating | The international ISO 14644.1 standard, CLASS 5 (U.S. Federal 209E, 100 level) |
| Wind Speed | 0.3~0.6m/s(Adjustable) |
| Noise (dB) | ≤62 |
| Vibration Half Peak | ≤3μm（X、Y、Z direction） |
| High Efficiency Filter | Efficiency 99.99% |
| Illumination（LX） | ≥300 |
| Work Environment | Ambient temperature 10~30℃, Relative humidity |
| below 70%, No obvious vibration and dust around | |
| Overall size(mm）（H×W×D） | 1585×1460×735 |
| Inner size（mm） （H×W×D） | 500×1300×680 |
| Voltage(V)/ | AC220V/50Hz |
| Power（W） | 870 |
| Net weight (KG) | 210 |
| Shipping weight(KG) | 235 |
| Packing size（mm）（H×W×D） | 1030×1650×855 |
Technical specifications
| Dimensions | L 156 × W 83.5 × H 124 cm |
|---|---|
| Weight | 235 kg |
| Manufacturer | Kalstein |
