Description

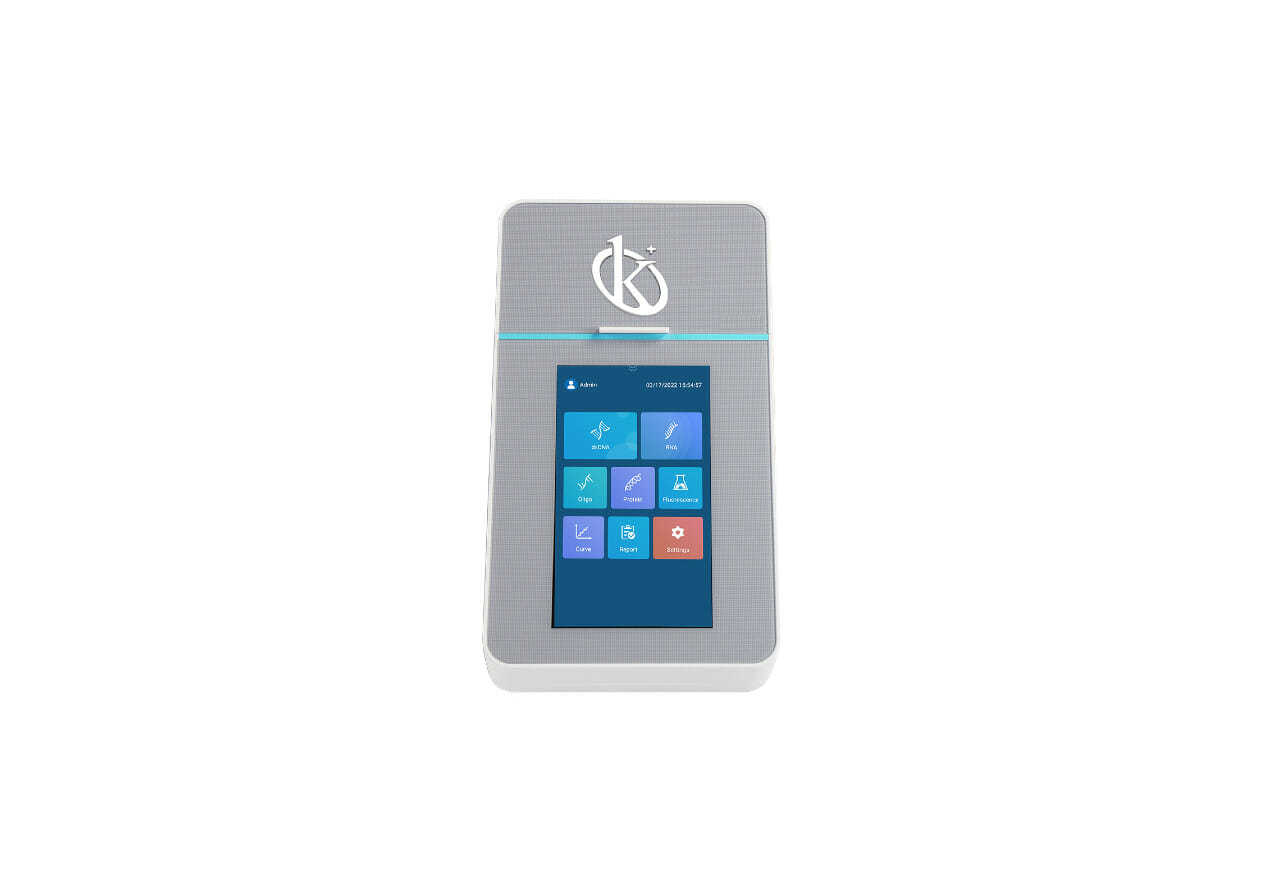

The Fluorometer YR06061 is designed for high-sensitivity quantitative analysis of DNA, RNA, and proteins. This advanced device features easy-to-use and humanized software, an intuitive user interface, and rapid testing methods that significantly reduce test times. Equipped with LED light sources and precise excitation and emission filters, it ensures accurate results for a wide range of samples. Ideal for laboratories requiring reliable performance, this fluorometer offers a superb combination of functionality and efficiency.
Market Price
Typically, the Fluorometer YR06061 is valued in the range of $5,000 to $7,000 in the market, depending on the vendor and additional features or service packages offered. Considering the high-quality performance and robust features of the YR06061, this price range is competitive for advanced laboratory fluorometers.
Frequently Asked Questions
What types of samples can the YR06061 analyze? This device is optimized for detecting and analyzing DNA, RNA, and protein samples.
How quickly can tests be performed? The YR06061 can perform measurements in ≤5 seconds per sample, making it exceptionally fast.
Is the software user-friendly? Yes, the fluorometer comes with humanized software and an intuitive interface designed for ease of use.
Advantages and Disadvantages
The main advantages of the Fluorometer YR06061 include its high sensitivity, rapid testing time, and user-friendly design. It also offers great precision with a linear range of 5 orders of magnitude. However, a potential disadvantage might be the cost for smaller labs with limited budgets.
Using the Product in the Field
In practical applications, the YR06061 excels in fields such as genomics, protein analysis, and clinical diagnostics. Its robust hardware and software make it well-suited for demanding laboratory environments, allowing researchers to perform complex analysis swiftly and accurately.
Recommendations
For optimal performance, regularly calibrate the fluorometer following the manufacturer’s guidelines. Keeping the device clean and storing it properly when not in use will also extend its lifespan. Users can access additional resources and troubleshoot issues by visiting our Kalstein Plus platform.
Features
- LED light source with broad excitation range
- Dual USB and LAN connectivity
- Compact design with a 7-inch touch screen display
- Stores up to 20,000 programs
Technical Specifications
| Model | YR06061 |
| Light source | LED |
| Excitation filter | Blue: 460±20 nm Red: 625±20 nm |
| Emission filter | Green: 525-570 nm (45 nm) Red: 670-725 nm (55 nm) |
| Detector | Photodiode |
| Throughput | 1 |
| Sample tube type | 0.5 mL PCR tube |
| Linear | R²≥0.995 |
| Linear range | 5 orders of magnitude |
| Sensitivity (detection limit) | <0.1 pg/uL (dsDNA HS) |
| Measurement time | ≤5 s/sample |
| Input power | 24 V 2 A |
| Operating voltage | 100-240 V@50-60 Hz |
| External port | USB (Type A) ×2, USB (Type B) ×1, LAN ×1 |
| Display | 7-inch touch screen |
| Size (D×W×H) | 286×161×61 mm |
| Weight | 1.5 kg |
| Storage capacity | 20000 programs |
