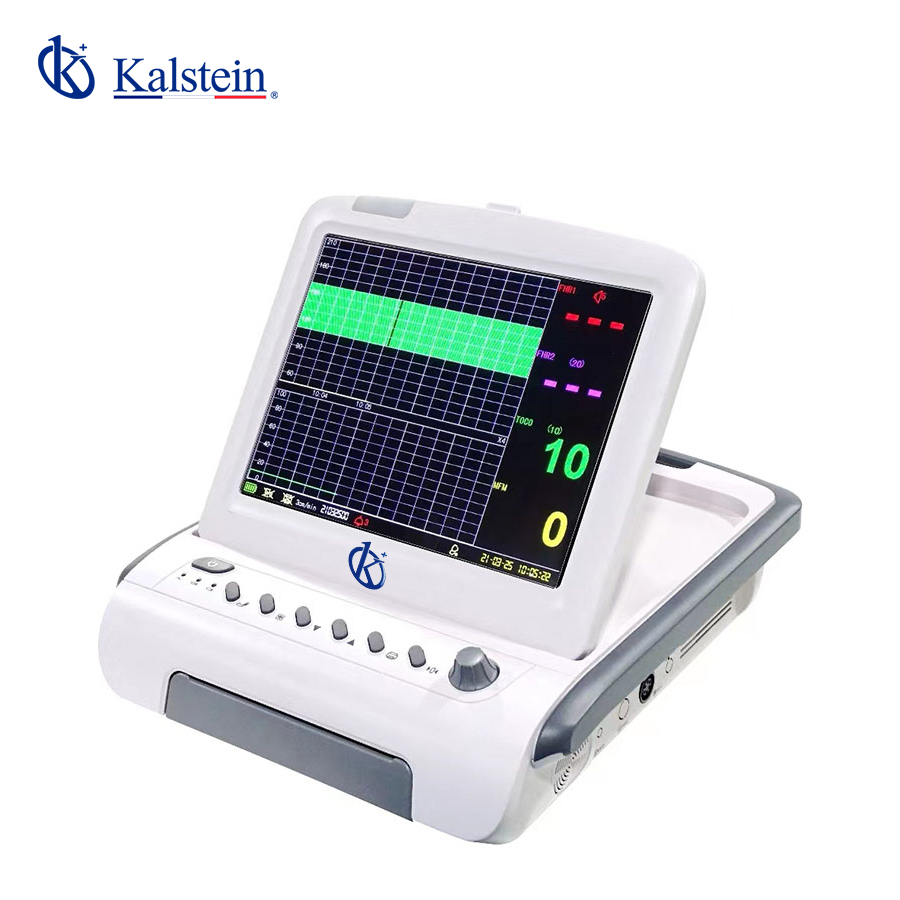

Fetal Monitor YR02190A
Fetal Monitor YR02190A — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Fetal Monitor YR02190A is an advanced medical device designed to provide accurate monitoring of fetal heart rate (FHR), uterine activity, and maternal health indicators such as SpO2 and NIBP. Featuring a 12.1-inch color TFT screen, this monitor offers excellent visualization of data, allowing healthcare professionals to make informed decisions. With a modern signal processing system and the capability to trace up to six waveforms, the YR02190A is essential for hospitals and clinics focused on maternal-fetal health. Additionally, its compact design, combined with optional features such as a fetal stimulator and trolley, enhances its versatility and ease of use.
Market Price
The average market price for advanced fetal monitors like the YR02190A typically ranges from $2000 to $3000 USD. This pricing takes into account various factors including the features, technological advancements, and reliability of the device, making it a cost-effective solution for healthcare providers seeking top-notch fetal monitoring equipment.
Frequently Asked Questions
What is the primary use of the Fetal Monitor YR02190A? The primary use is to monitor fetal heart rate and uterine activity during pregnancy and labor to ensure the safety and health of the mother and baby.
Is the monitor easy to operate? Yes, the monitor is designed with user-friendliness in mind, featuring an intuitive interface and a foldable screen for easy adjustment and viewing.
Advantages and Disadvantages
Advantages: High-accuracy measurements, portable design, and a comprehensive range of standard and optional features.
Disadvantages: Requires regular maintenance and calibration to ensure optimal performance, and some optional features may incur additional costs.
Product Use in the Field
The YR02190A is used extensively in hospital maternity wards and clinics, allowing for continuous monitoring of the fetus and mother during high-risk pregnancies and labor. Its portability makes it a great choice for both static and dynamic environments.
Recommendations
To maximize the benefits of the Fetal Monitor YR02190A, users should ensure regular maintenance checks, calibrate the device as recommended, and utilize available training resources to fully understand its functionality. For purchasing inquiries or to learn more about how the YR02190A can enhance patient care, request a quote through the Kalstein Plus platform today.
Features
- 12.1-inch color TFT screen with 90-degree folding capability
- Resolution of 800x600 with up to six trace waveforms
- Standard configurations including SpO2, MHR, NIBP, TEMP, ECG, RESP, TOCO, FHR, FM, and Recorder
- Optional features such as Fetal Stimulator and FHR2
Technical Specifications
| Model | YR02190A |
| FHR | |
| Strength | < 5mW/cm2 |
| Working Frequency | 1.0MHz |
| Signal Processing | Special DSP system and modern recognition |
| Measurement Range | 50～240bpm |
| Alarm Range | High Limit: 160, 170, 180, 190 bpm Low Limit: 90, 100, 110, 120 bpm |
| Maximum Audio Output Power | 1.5 Watt |
| TOCO | |
| Measurement Range | 0-100 units |
| SpO2 | |
| Measurement Range | 70%～99% |
| Measure Accuracy | ±3% error |
| HR | |
| Measurement Range | 30bpm～240bpm |
| Measure Accuracy | ±2 bpm |
| NIBP | |
| Measurement Range | SYS 6.7～32.0kPa(50～240mmHg) MEAN: 3.4～26.6kPa(25～200mmHg) DIA: 2.0～24.0ka(15～180mmHg) |
| NIBP Accuracy | ±1.1kPa（±8mmHg）or ±5% of results, taking the bigger one |
| HR Measurement Range | 40bpm～240bpm |
| HR Measure Accuracy | ±2 bpm or ±5% of the results, taking the bigger one. |
| Measure Mode | Manual to start/stop NIBP measurement |
| Temperature | |
| Arrange | 0~50 ℃ |
| Resolution | 0.1 ℃ |
| Accuracy | 0.1 ℃( excluded the error caused by transducer) |
| ENVIRONMENT | |
| Working Environment | Temperature: +5℃ ～ +40℃ |
| Atmospheric Pressure | 86kPa ～ 106kPa |
| Transport and Storage Temperature | Humidity: < 93％ Atmospheric Pressure: 86kPa ～ 106kPa |
Technical specifications
| Dimensions | L 52.5 × W 44.5 × H 29.5 cm |
|---|---|
| Weight | 10 kg |
| Manufacturer | Kalstein |
Video Fetal Monitor YR02190A
Frequently asked questions
How to know the prices of Fetal Monitor YR02190A?
To know the price of Fetal Monitor YR02190A, please send us an email with your request through the contact form AQUI.
What are the delivery times for Fetal Monitor YR02190A?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Fetal Monitor YR02190A?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Fetal Monitor YR02190A?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Fetal Monitor YR02190A?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
