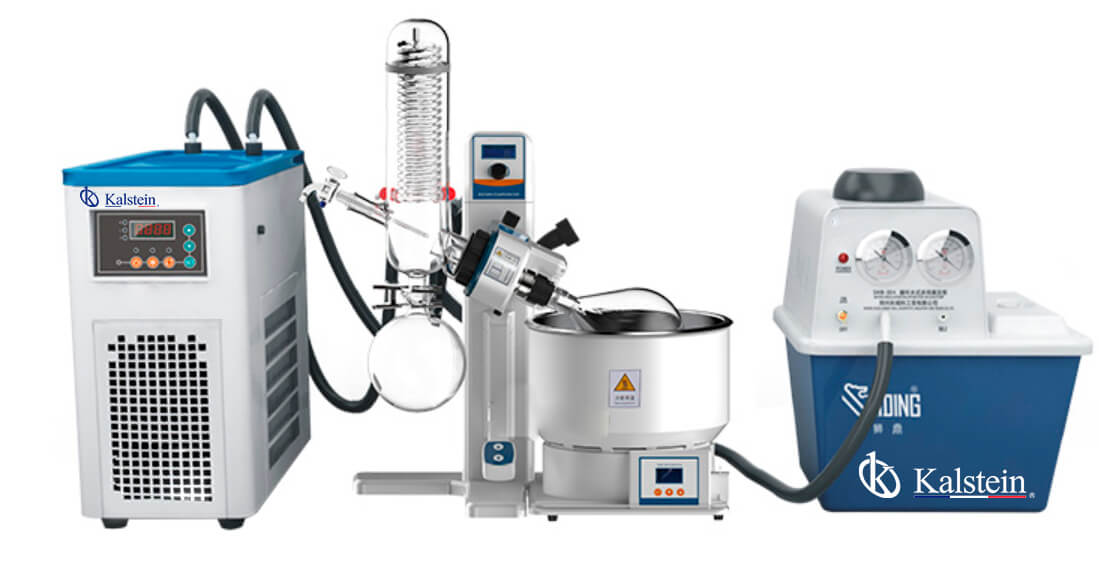

Understanding the Operating Principle and Scientific Foundation of the YR02306 Rotary Evaporator
The YR02306 Rotary Evaporator is a crucial piece of laboratory equipment widely used for various applications, including evaporation, distillation, and separation of chemical products. This article aims to provide a comprehensive understanding of its operating principle and the scientific foundation that underlies its functionality.
The Scientific Basis of Rotary Evaporation
Rotary evaporation is a technique that utilizes the principles of vaporization and condensation to separate liquids based on their boiling points. The process involves heating a liquid to its boiling point, followed by vaporization. The vapor is then condensed back into a liquid and collected separately. The efficiency of this method depends on various factors, such as pressure, temperature, and surface area.
The YR02306 employs a unique design that enhances the efficiency of the evaporation process. By rotating the evaporation flask, the surface area of the liquid is significantly increased, allowing for more effective vaporization. This rotation also aids in avoiding bumping and foaming, common issues in traditional evaporation techniques.
Key Features of the YR02306 Rotary Evaporator
- Double Sealing Technology: The patented double sealing technology using PTFE and rubber ensures a high level of vacuum pressure, which is essential for efficient evaporation.
- Adjustable Angle of Evaporation Flask: The adjustable inclination angle of the evaporation flask allows for optimal liquid handling and heating.
- PID Temperature Control: The PID controller provides precise temperature control, essential for consistent evaporation results.
- Motorized Lift Mechanism: This feature ensures smooth lifting and lowering of the flask, enhancing user convenience.
Comparative Analysis of Rotary Evaporators
When comparing the YR02306 with its counterparts, several advantages become apparent. Traditional rotary evaporators may lack the advanced sealing techniques and temperature control systems present in the YR02306. Moreover, the noise levels during operation are significantly minimized due to its synchronous belt transmission mechanism, making it more suitable for laboratory environments.
Technical Specifications of the YR02306
| Specification | Details |
|---|---|
| Model | YR02306 |
| Rotation Speed | 10~280 rpm |
| Pressure Increase Rate | <=0.33 kPa/min |
| Temperature Range | RT + 5~95℃ |
| Thermal Stability | ±1℃ |
| Heating Power | 1300W |
| Evaporation Flask Volume | 500 ml, 1000 ml |
| Power Supply | 100V~240V, 50/60 Hz |
| Weight | 10KG (main unit) |
Application of the YR02306 in Laboratory Settings
The YR02306 is utilized in various laboratory contexts, including chemical synthesis, extraction processes, and concentration of solutions. Its ability to operate under vacuum conditions minimizes the boiling point of solvents, allowing for gentle evaporation without thermal degradation of sensitive compounds. This makes it ideal for applications in pharmaceuticals, food science, and environmental analysis.
Frequently Asked Questions
What are the main applications of the YR02306 Rotary Evaporator?
The YR02306 is primarily used for evaporation, distillation, and separation of solvents in laboratory settings, particularly where gentle heating and reduced pressure conditions are critical to prevent degradation of the sample.
How does the double sealing technology enhance performance?
The double sealing technology significantly improves the vacuum pressure within the system, which is essential for effective solvent evaporation. This minimizes the risk of contamination and enhances the overall efficiency of the process.
What factors can affect the evaporation rate in the YR02306?
The evaporation rate can be influenced by several factors, including the rotation speed of the flask, the temperature setting, the pressure within the system, and the nature of the solvent being evaporated.
Is the YR02306 easy to operate for beginners?
Yes, the YR02306 is designed with user-friendly features, including a digital display for temperature and speed settings, and a motorized lift for easy handling of the evaporation flask.
How does the PID controller work in the YR02306?
The PID controller in the YR02306 allows for precise temperature regulation by continuously measuring the temperature and adjusting the heating element accordingly to maintain the set temperature, ensuring consistent evaporation results.
Can the YR02306 be used for sensitive samples?
Absolutely, the YR02306 is particularly suitable for sensitive samples due to its ability to operate at lower temperatures under vacuum conditions, preventing thermal degradation.
Where can I request a quote for the YR02306?
You can request a quote for the YR02306 through our dedicated sales team or via our online platform.
