Installation and Startup Guide for the Programmable Thermostatic Drying Oven YR06445

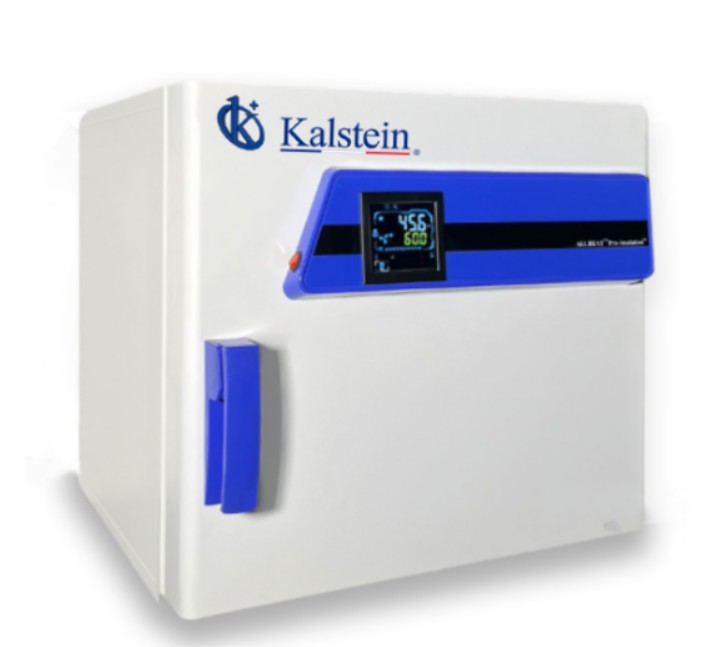

The YR06445 Programmable Thermostatic Drying Oven is a sophisticated laboratory device designed for drying, sterilizing, thermal treatment, and storage in research labs, quality control, and industrial applications. This guide provides a detailed overview of the installation and startup process, ensuring that users can maximize the oven's capabilities from the outset.
Understanding the YR06445: An Overview
Before diving into the installation process, it is essential to understand the key features of the YR06445. The oven boasts forced convection with adjustable airflow speed across five levels, facilitated by a microprocessor-controlled PID system. An intuitive touch screen interface allows segmented programming, ensuring precise thermal stability for various applications.
With a temperature range spanning from room temperature plus 5 degrees Celsius to 300 degrees Celsius, the YR06445 is equipped with advanced features like the ALLHEAT™ preheating system and the ALLFLOW™ air cycle, promoting uniform temperature distribution. Its stainless steel SUS304 interior, along with Pro-Insulation™, contributes to energy efficiency and effective thermal recovery.
Unboxing and Initial Inspection
Upon receiving the YR06445, it is crucial to perform an initial inspection to ensure all components are intact. Here’s a checklist to follow:
- Remove the oven from the packaging and inspect for any visible damages.
- Verify that all included accessories (trays, manuals, etc.) are present.
- Check for the calibration certificate, if applicable.
- Ensure that the power supply matches the oven's requirements (110/220 V – 50 Hz).
Site Preparation and Requirements
To ensure optimal performance, the installation site must meet specific environmental conditions:
- Temperature range: 10-30 degrees Celsius
- Relative humidity: below 70%
- Proper ventilation to maintain air circulation
- Stable, level surface to support the unit's weight (48 kg)
Adhering to these conditions not only ensures the oven functions correctly but also prolongs its lifespan.
Installation Steps for YR06445
Follow these steps to install the YR06445 effectively:
- Position the Oven: Place the oven on a sturdy, level surface. Ensure there is enough space around the unit for proper airflow (minimum of 20 cm on all sides).
- Electrical Connection: Connect the oven to the power supply. Ensure the voltage matches the specifications of the YR06445.
- Initial Calibration: Before first use, calibrate the oven to ensure accurate temperature readings. Refer to the manual for detailed calibration instructions.
- Setup Parameters: Use the touch screen to set default parameters for temperature, time, and airflow speed according to your requirements.
First Run and Calibration
Once installed, perform a test run to validate the setup:
- Set the oven to a mid-range temperature (e.g., 150 degrees Celsius) and run it for approximately 30 minutes.
- Monitor the temperature stability; deviations beyond ±0.5% should prompt a recalibration.
- After the test run, allow the oven to cool down and prepare for your specific applications.
Common Installation Mistakes
To avoid common pitfalls, keep these points in mind during installation:
- Neglecting site conditions can lead to inconsistent results.
- Improper leveling can cause uneven heating.
- Forgetting to calibrate after installation may result in inaccurate readings.
- Overloading the trays beyond the 20 kg limit can damage the oven.
Technical Specifications of YR06445
| Specification | Value |
|---|---|
| Model | YR06445 |
| Convection Mode | Forced convection with adjustable airflow speed |
| Control System | PID Microprocessor |
| Temperature Range (°C) | RT + 5°C to 300°C |
| Temperature Accuracy (°C) | 0.1 |
| Temperature Fluctuation (°C) | ±0.5% (50–240°C) |
| Uniformity of Temperature (9-point test) | 1% (50–240°C) |
| Heating Time | Reaches 150°C in 30 minutes |
| Maximum Load per Tray / Total Load | 20 kg per tray / 40 kg total |
| Power (W) | 1100 |
| Dimensions (H×W×D) | 670×680×593 mm |
| Weight | 48 kg net |
Frequently Asked Questions
What are the specific setup requirements for the YR06445?
The YR06445 requires a stable environment with a temperature range between 10-30 degrees Celsius and humidity below 70%. Adequate ventilation is also necessary to ensure proper airflow around the unit.
How can I ensure accurate temperature readings on the YR06445?
To ensure accurate temperature readings, perform an initial calibration before the first use. Regular calibration checks should also be conducted as part of routine maintenance.
What safety features does the YR06445 include?
The YR06445 is equipped with an over-temperature alarm, ensuring that users are alerted if the temperature exceeds safe operational limits.
How do I maintain the YR06445 to ensure longevity?
Regular maintenance includes periodic cleaning of the stainless steel interior, inspecting seals, and verifying calibration annually according to laboratory requirements.
Can the YR06445 be used for sterilization processes?
Yes, the YR06445 can be used for sterilization processes, as it maintains precise temperature control suitable for effective sterilization.
What is the maximum load capacity for trays in the YR06445?
The maximum load capacity for each tray in the YR06445 is 20 kg, with a total maximum load of 40 kg for the oven.
