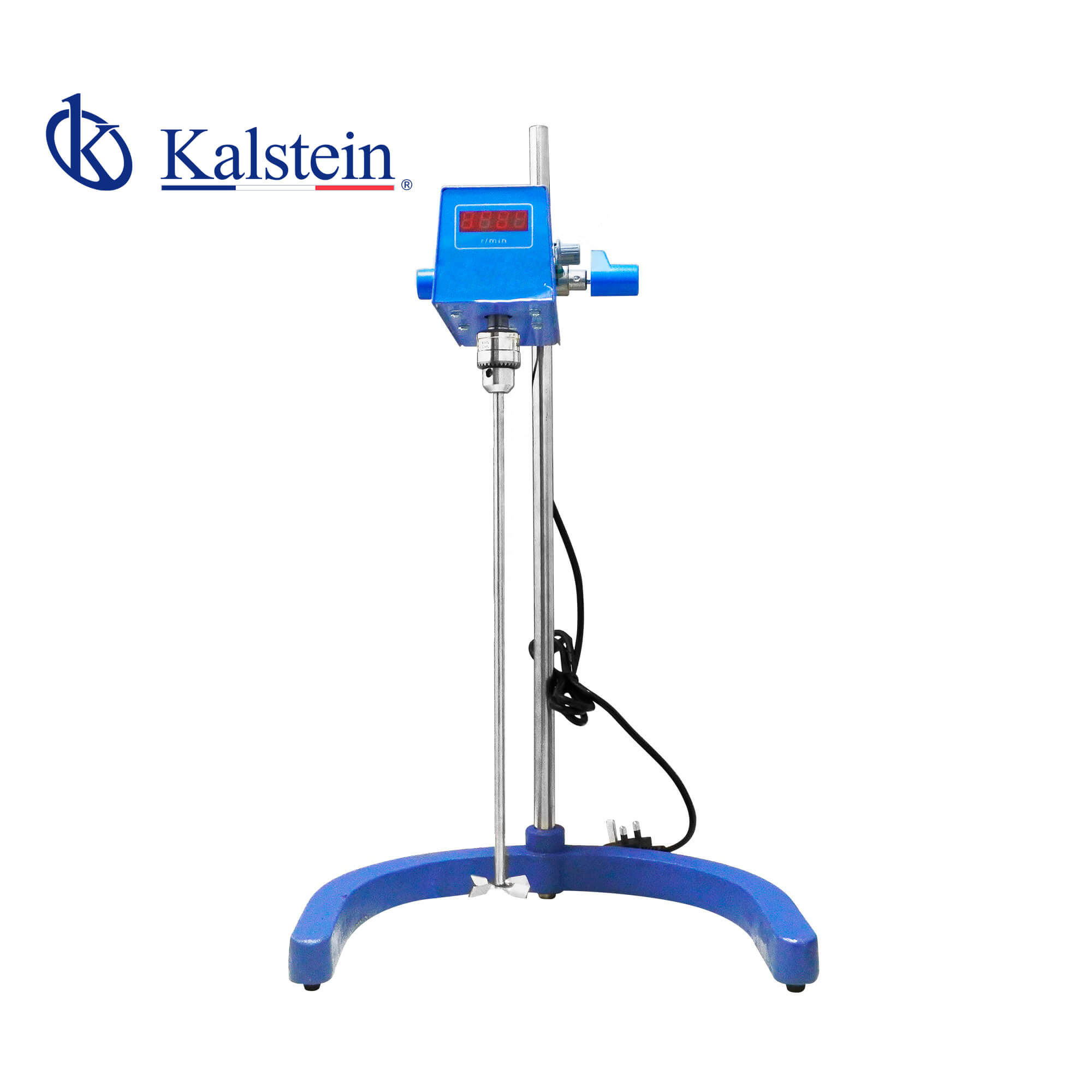

Environmental Conditions and Installation Requirements for the YR02956 Homogenizer
The YR02956 homogenizer is a sophisticated laboratory device designed for effective mixing in various applications. To ensure optimal performance, it is vital to understand the environmental conditions and installation prerequisites necessary for this model. This guide provides an in-depth overview that will help operators and lab managers prepare their workspace for the YR02956, ensuring reliability and accuracy in its operation.
Understanding the YR02956 Homogenizer
The YR02956 is renowned for its compact design, durability, and user-friendly operation. Equipped with a powerful DC brushless motor, it offers precise control over mixing speed and temperature, making it suitable for laboratory environments where consistent results are paramount. Before installation, it is crucial to consider factors like temperature range, humidity levels, voltage specifications, and additional site requirements.
Technical Specifications of the YR02956
| Specification | Details |
|---|---|
| Model | YR02956 |
| Motor Power | 100 W |
| Motor Type | Brushless DC Motor |
| Motor Torque | 450 m N.M |
| Voltage | 220V +/- 10% or 110V +/- 10% |
| Rotation Speed | 60-1500rpm / 60-2000rpm |
| Capacity | 50ml - 50L |
| Digital Display | LED |
| Rod Length | 350mm |
| Rod Material | Stainless Steel |
| Dimension (mm) | 390 x 93 x 160 |
| Gross Weight (KG) | 12.1 |
Site Requirements for the YR02956 Homogenizer
Proper installation starts with understanding the site requirements. The YR02956 homogenizer must be placed in an environment that meets the following conditions:
- Temperature Range: The unit operates best in temperatures between 15°C and 30°C (59°F to 86°F). Extreme temperatures can affect the homogenization process.
- Humidity Levels: The ideal humidity range is 30% to 70%. Excess humidity can lead to corrosion, while too low humidity can affect performance.
- Voltage and Frequency: Ensure the power supply adheres to the voltage requirements of 220V +/- 10% or 110V +/- 10% with a frequency of 50/60 Hz.
- Ventilation: Adequate airflow is essential. Avoid placing the homogenizer in enclosed spaces where heat can accumulate.
- Vibration and EMI: The unit should be situated on a stable surface, free from vibrations, and away from electromagnetic interference sources.
- Clearances: Maintain at least 10 cm of clearance around the device to ensure proper cooling and accessibility.
- Drainage and Supplies: If the homogenizer is used with liquids, ensure adequate drainage and access to gas/water supplies as needed.
Checklist for Installation Setup
The installation of the YR02956 homogenizer requires careful attention to detail to ensure optimal functionality. Below is a checklist to follow during the setup process:
| Installation Step | Description |
|---|---|
| Unbox the Device | Carefully remove the homogenizer from its packaging, ensuring no damage occurred during transport. |
| Position the Homogenizer | Place the homogenizer on a stable, level surface in accordance with specified site requirements. |
| Connect Power Supply | Connect the device to the appropriate power source while ensuring compliance with voltage specifications. |
| Calibrate the Device | Perform initial calibration following the manufacturer's recommendations, checking for accuracy in settings. |
| Test Run | Conduct a test run to validate operational efficiency and correct any issues that may arise. |
| Document Setup | Record all setup parameters for future reference and troubleshooting. |
Troubleshooting Common Installation Issues
During installation, operators may encounter various issues. Below are common installation problems, their possible causes, and solutions:
| Issue | Possible Causes | Solutions |
|---|---|---|
| Device Does Not Power On | 1. Power supply issue 2. Faulty connection | 1. Check power outlet and connections 2. Test with different outlets |
| Inconsistent Speed | 1. Calibration error 2. Mechanical obstruction | 1. Recalibrate the homogenizer 2. Inspect for blockages |
| Overheating | 1. Poor ventilation 2. Incorrect voltage | 1. Ensure adequate ventilation 2. Verify voltage settings |
Frequently Asked Questions
What is the optimal temperature range for the YR02956 homogenizer?
The optimal temperature range for the YR02956 homogenizer is between 15°C and 30°C (59°F to 86°F). Operating outside this range may affect the homogenization process.
How often should the YR02956 be calibrated?
Calibration frequency for the YR02956 depends on use but should be performed after initial setup and periodically thereafter, especially after significant changes in workload or environment.
What should be done if the YR02956 displays an error code?
Consult the user manual for guidance on error codes. Common steps include checking connections, ensuring proper power supply, and performing a reset of the device.
Can the YR02956 be used in a fume hood?
Yes, the YR02956 can be used in a fume hood, provided that it is adequately secured and that the hood's airflow does not interfere with its operation.
What maintenance is required for the YR02956?
Regular maintenance includes cleaning the device, checking for wear on moving parts, and ensuring the electrical connections are secure. Periodic professional servicing is also recommended.
Is there an option for remote operation with the YR02956?
The YR02956 does not typically support remote operation; however, it is essential to refer to the manufacturer’s specifications for any optional upgrades or accessories that may provide such functionality.
