Ecg-digital Electrocardiograph
Digital electrocardiographs are essential diagnostic tools used to capture the electrical activity of the heart with precision and clarity. These devices convert the heart’s signals into digital data, allowing for advanced analysis, storage, and sharing of patient information within medical facilities. Their high-resolution displays and connectivity options make them indispensable in modern clinical and veterinary practices.
The primary application of digital electrocardiographs spans from routine health check-ups to critical cardiac monitoring. They are widely used in clinics, hospitals, and veterinary centers to detect arrhythmias, myocardial infarctions, and other cardiovascular abnormalities efficiently. Their ability to integrate with electronic health records and provide real-time results enhances patient care and decision-making.
What You Should Know Before Selecting a Digital Electrocardiograph and Making an Investment
Key Factors to Consider
When choosing a digital electrocardiograph, it is crucial to evaluate signal accuracy, device portability, and compatibility with various patient monitoring systems. Additionally, user interface simplicity and software integration significantly impact workflow efficiency, especially in busy clinical environments.
Battery life and data storage capacity are other important factors to consider. Adequate storage ensures long-term patient data management, while a reliable battery extends device use during mobile or emergency applications. Connectivity options such as USB, Bluetooth, and Wi-Fi enhance versatility.
Market Price Range
The price of digital electrocardiographs in the market varies widely depending on the features, brand, and technology. Entry-level models may cost less but might lack advanced diagnostic tools, while high-end devices with additional modules and software integrations command higher prices.
It is essential to balance the investment cost with the clinical benefits the electrocardiograph can provide. Kalstein offers competitive pricing across models, reflecting both mid-range and premium technology to fit different budget requirements without compromising quality.
Quality-Price Ratio
A good quality-price ratio implies acquiring a digital electrocardiograph that provides long-term reliability, accurate diagnostics, and excellent manufacturer support. Kalstein equipment is designed to meet these criteria, offering robust construction and responsive customer service.
Opting for devices with durable materials and proven technology also ensures better performance over time. The availability of firmware updates and maintenance services contributes positively to the overall value and usability of the equipment.
Expected Lifespan According to Use and Maintenance
The expected lifespan of a digital electrocardiograph depends largely on usage intensity, maintenance routines, and technical support availability. Regular calibration and software upgrades can extend the device’s operational life significantly.
Proper cleaning and handling prevent premature wear and ensure consistent performance. Kalstein provides detailed guidelines and access to certified technicians to help maintain optimal device function throughout its lifespan.
KALSTEIN DIGITAL ELECTROCARDIOGRAPHS
Among so many products, at Kalstein you can find the ideal digital electrocardiograph for your Clinic
If you are unsure about which digital electrocardiograph to buy, consider your facility needs, the features of each model, connectivity options, and the software compatibility. Kalstein offers a wide range of digital ECG devices tailored to provide accurate and reliable cardiac diagnostics for various clinical settings, simplifying your purchase decision.
YR05158 03 Channel Electrocardiograph Touch Screen ECG Machine
The YR05158 03 Channel Electrocardiograph Touch Screen ECG Machine is a cutting-edge medical device designed to provide…
ECG Monitor 12 Channel Portable ECG Equipment YR05162
The ECG Monitor 12 Channel Portable ECG Equipment YR05162 is a highly advanced and portable electrocardiograph device de…
Electrocardiograph with Color Display YR06667
The YR06667 is a next-generation digital electrocardiograph designed to provide superior diagnostic precision in hospita…

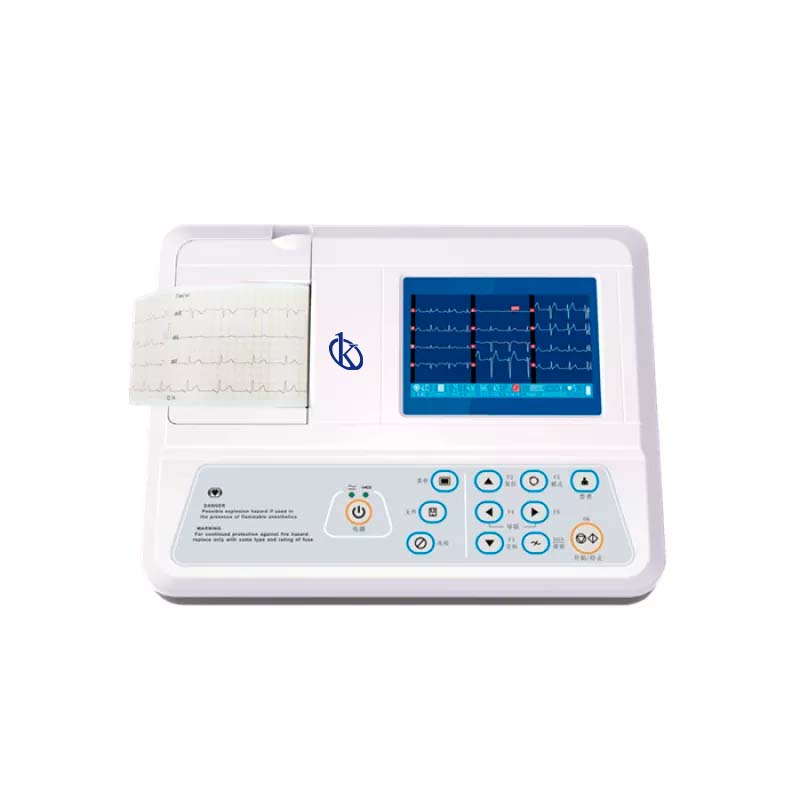

12-Lead ECG monitor USB / RS232 interface YR05160
The 12-Lead ECG Monitor USB / RS232 Interface YR05160 is a cutting-edge device designed for accurate and simultaneous co…
Our digital electrocardiograph most sold

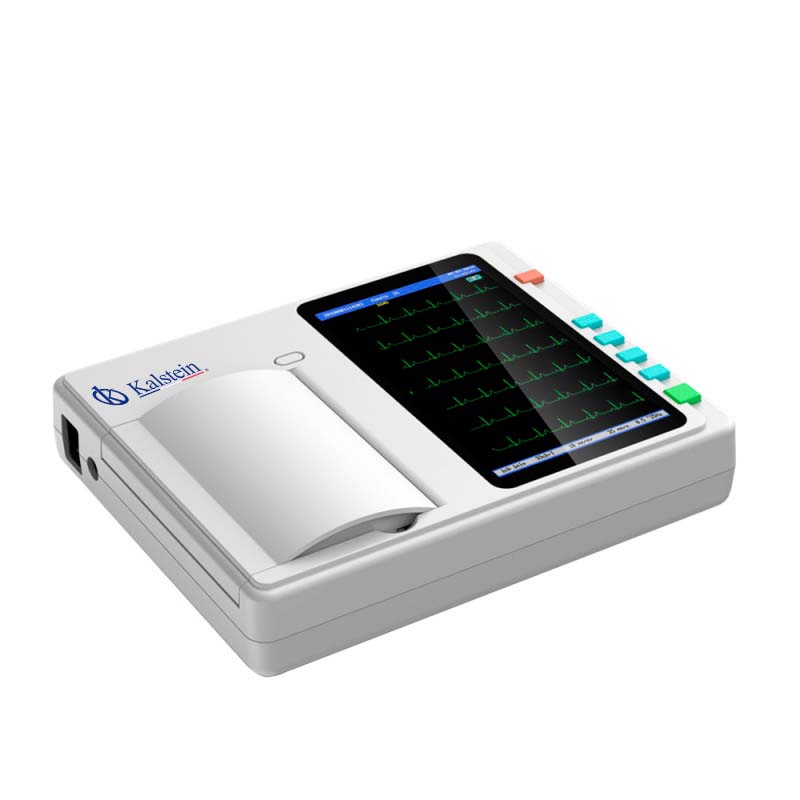

The YR05158 03 Channel Electrocardiograph Touch Screen ECG Machine is a cutting-edge medical device designed to provide precise cardiac monitoring. With its ability to simultaneously print three waveforms, this ECG machine stands out for its efficiency. Its 7-color LCD touchscreen offers a user-friendly experience, making it ideal for quick and accurate diagnostics. The machine can operate in manual, automatic, and arrhythmia analysis modes, supporting 12 leads to ensure comprehensive cardiac assessments.
The price for 3-channel ECG machines like the YR05158 generally ranges from 500 USD to 800 USD, depending on the included features and the seller. This competitive pricing makes it accessible for both small and larger medical practices looking for high-quality, reliable equipment. To get a precise quote and take advantage of special offers, reach out to us or check the automated quote option through Kalstein Plus.
| Model | YR05158 |
| Power supply | Electric |
| Warranty | Forever |
| After-sales service | Return and replacement |
| Material | metal, plastic |
| Duration | 1 year |
| Quality certification | this |
| Instrument Classification | Class II |
| Safety standard | None |
| Type | Cheap Price Animal ECG |
| Monitor | 7-color LCD touchscreen Super slim design |
| Points of sale | Support SD card, USB disk |
| Analysis modes | Manual / Auto / Arrhythmia |
| Guides | 12 Guides |
| Software ECGNET | Optional |
| Anti-baseline drift | Automatic |
| Interface | USB/RS232 |
| Storage | 30,000 patients save / replay |
| Recording | 112mm *20m |
| Elements | specification |
| Characteristics | 7 ″ display, touch screen Support Ecg analysis capabilities |
| Guides | 12 Guides |
| Acquisition of potential customers | synchronously 12 leads |
| Input circuit | Floating; Protection circuit against the effect of the defibrillator |
| Input impedance | ≥50MΩ |
| Input circuit current | ≤0.0.05μA |
| Recording mode | Automatic: 3CH × 4 + 1R, 3CH × 4, 3CHx2 + 2CHx3,3CHx2 + 2CHx3 + 1R, 6CHX2; Manual: 3CH, 2CH, 3CH + 1R, 2CH + 1R; Rhythm: any selectable lead. |
| Filter | EMG Filtro: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz DFT Filtro: 0.05 Hz/ 0.15 HzAC Filtro: 50 Hz / 60Hz |
| CMRR | >100dB |
| Patient current leak | <10μA |
| Input circuit current | <0.05µA |
| Frequent response | 0.05Hz~150Hz (-3dB) |
| Sensitivity | 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV |
| Anti-baseline drift | Automatic |
| Constant time | ≥3.2s |
| Noise level | <15μVp-p |
| Paper speed | 12.5 mm/s, 25 mm/s, 50 mm/s |
| Recording mode | Thermal printing system |
| Paper specification | 80mmx20m paper roll 120mmx20m paper roll |
Analysis of key features ensures optimal device selection
Discover the Future of Cardiac Care with Kalstein’s Digital ECG Electrocardiographs
As someone who has closely followed the advancements in medical technology, particularly cardiac care, the Ecg Digital Electrocardiographs from Kalstein truly s…
Exploring the Excellence of Kalstein’s ECG Digital Electrocardiographs: A New Era in Cardiac Diagnostics
As someone deeply immersed in the field of medical diagnostics, I can attest to the outstanding reputation of the Kalstein ECG Digital Electrocardiograph. Known…
Kalstein’s ECG Digital Electrocardiographs: Pioneering Excellence in Cardiac Care
In the rapidly evolving field of medical technology, the ECG Digital Electrocardiograph from Kalstein stands out as a groundbreaking device. With years of exper…
Unveiling the Power of Kalstein’s Ecg Digital Electrocardiographs: The Future of Cardiac Monitoring
The Kalstein brand has long been synonymous with quality and innovation in the realm of medical equipment, and their Ecg Digital Electrocardiographs are no exce…
Digital Electrocardiograph Offers
ECG Monitor YR06920 – YR06921
Electrocardiograph with Color Display YR06667
ECG Monitor 12 Channel Portable ECG Equipment YR05162
12-Lead ECG monitor USB / RS232 interface YR05160

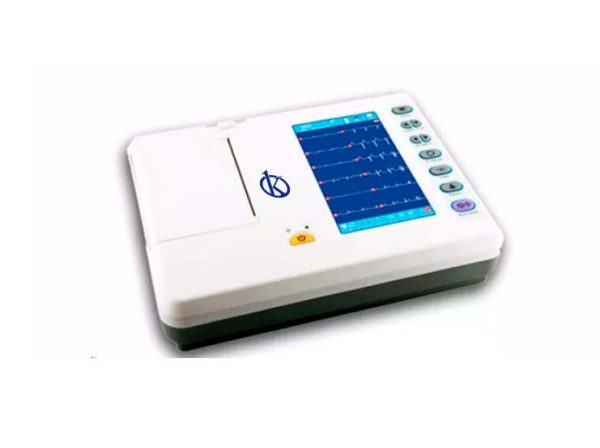

6 Channel Smart Hospital ECG Manufacturing Machine Monitoring Dynamic Holter ECG Systems YR05161

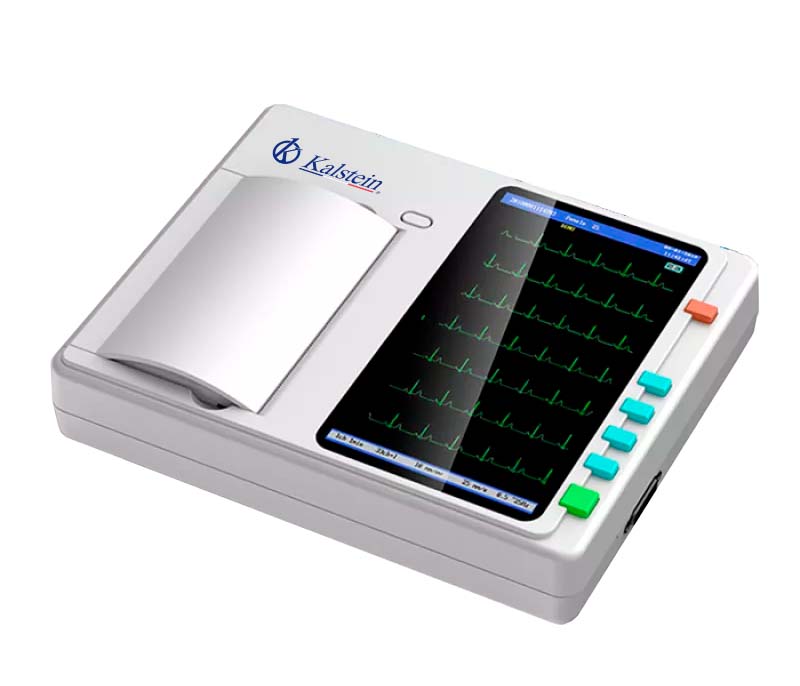

YR05159 Medical Ecg Machine 12 derivations 6 Channel
YR05158 03 Channel Electrocardiograph Touch Screen ECG Machine
Kalstein continuously updates to meet clinical demands
Our guides help you choose and maintain ECG devices effectively
Follow our expert recommendations and comprehensive guides to optimize digital electrocardiograph use and maintenance, ensuring high diagnostic accuracy and extended device longevity in your clinical practice
High-Resolution Electrocardiograph for Cardiological Analysis
When it comes to performing precise cardiological analysis, the Digital ECG Electrocardiograph emerges as an essential tool. Advances in medical techn…
ECG-Digital Technology: Advances in Cardiac Rhythm Detection and Analysis
In the world of modern medicine, advancements in technology for detecting and analyzing cardiac rhythms have led to more accurate and reliable equipme…
Digital ECG Electrocardiograph: Precision and Efficiency in Cardiac Monitoring
Cardiovascular health care is essential, especially when it comes to monitoring heart activity in clinical and hospital settings. In this context, ele…
Digital Electrocardiograph for Accurate Cardiac Analysis
An electrocardiograph is essential in modern cardiology, designed to measure the heart’s electrical activity. It records the heart’s rhythm and rate through an electrocardiogram (ECG). These devices help identify various heart conditions,…
