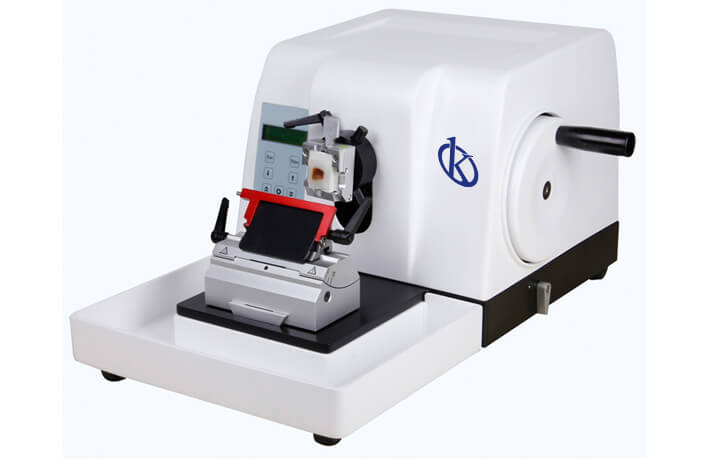

Customization and Advanced Configurations of the YR416 Microtome
The YR416 semi-automatic rotary microtome is a versatile tool in the laboratory, known for its reliability and operator comfort. As operators seek to maximize the utility of this instrument, understanding the customization options and advanced configurations is crucial. This article delves deep into the personalization possibilities of the YR416, exploring its features, optional accessories, and settings that can enhance its performance in various lab settings.
Technical Specifications of the YR416
| Specification | Details |
|---|---|
| Model | YR416 |
| Minimum Cutting Thickness Configuration | 0.25 μm |
| Horizontal Feed | 28 mm |
| Vertical Sample Stroke | 52 mm |
| Sample Holder Rotation | Any angle within 360 degrees |
| Blade Holder Base Movement Range | 0-60 mm (forwards and backwards) |
| Press Plate Movement Range | 0-23 mm |
| Sample Clamp Rotation | Any angle within 360 degrees |
| Sample Orientation | XY-8° |
| Maximum Sample Size | 50 × 70 mm |
| Precision Error | ±1% |
| Operating Voltage | AC 220V±10% 50Hz (standard model); AC 110V±10% 60Hz |
| Power Consumption | 100W |
| Dimensions | 580 × 410 × 305 mm (width × depth × height) |
| Net Weight | 29 kg |
Customization Options for the YR416
The YR416 microtome offers a range of customization features that allow users to adjust the instrument according to their specific lab needs. These options can enhance the efficiency and effectiveness of tissue sectioning. Users can modify several aspects of the microtome ranging from blade selection to motor speed adjustments.
Blade Selection
Choosing the right blade is vital for achieving optimal sectioning results. The YR416 supports various blade types, including disposable blades and high-precision stainless-steel blades. Users can select blades based on the material of the sample and the desired thickness. For instance, a disposable blade is ideal for routine applications, while a high-precision blade may be preferred for demanding histological applications.
Motor Speed Adjustments
The cutting speed can be adjusted, allowing operators to optimize the speed based on the sample type and the required section thickness. This feature is particularly beneficial for fragile tissues that require a slower cutting speed to prevent damage.
Advanced Configurations for Enhanced Performance
In addition to customization options, the YR416 allows for several advanced configurations that can significantly enhance its performance in laboratory settings.
Configurable Section Thickness Settings
The YR416 provides seamless switching between fine and coarse sectioning settings. Users can easily modify the section thickness from 0.25 μm to 60 μm, which is essential for different research applications. This feature is particularly useful in histopathology, where varying thicknesses are often required based on the type of tissue being examined.
Sample Orientation Adjustments
Operators can adjust sample orientation (XY-8°) to accommodate different types of samples. This flexibility ensures that the microtome can handle a wide range of materials while maintaining precision and accuracy in the cutting process.
Recommended Accessories for the YR416
To further enhance the functionality of the YR416 microtome, users can consider various optional accessories that cater to specialized needs.
Optional Sample Holders
Sample holders are critical for stabilizing samples during the sectioning process. Optional holders designed for specific sample sizes can enhance the precision of cuts. Users should assess their sample requirements and select holders that suit their needs.
Cooling Systems
For samples that are sensitive to heat, integrating a cooling system can help maintain sample integrity during sectioning. This accessory is particularly beneficial in histology where maintaining tissue morphology is essential for accurate results.
Frequently Asked Questions
What is the minimum cutting thickness of the YR416 microtome?
The minimum cutting thickness of the YR416 microtome is 0.25 μm, allowing for precise and fine sectioning of samples in laboratory settings.
Can the YR416 be used for various sample types?
Yes, the YR416 microtome is versatile and can be used for a wide array of sample types, including paraffin-embedded tissues, making it suitable for both clinical and industrial applications.
How does the YR416 ensure precision during sectioning?
The YR416 microtome features a high-precision motor for cutting, along with adjustable settings for blade speed and thickness, which together ensure accuracy and reproducibility in sectioning.
What types of blades are compatible with the YR416?
The YR416 is compatible with various blade types, including disposable blades and high-precision stainless-steel blades, allowing users to choose according to their specific needs.
How can I maintain the YR416 microtome for optimal performance?
Regular maintenance, including cleaning, checking blade sharpness, and ensuring proper calibration, is essential to maintaining the YR416 microtome's performance and extending its lifespan.
Are there additional accessories available for the YR416?
Yes, the YR416 microtome has a range of optional accessories, including sample holders and cooling systems, which can enhance its functionality and cater to specific application requirements.
How do I customize settings on the YR416 microtome?
Customizing settings on the YR416 involves adjusting the blade type, cutting speed, and sample orientation settings via the microtome's interface to suit the specific sample and sectioning requirements.
To request a quote for the YR416 microtome, please reach out to us today.
